Pulse Electronics Corporation

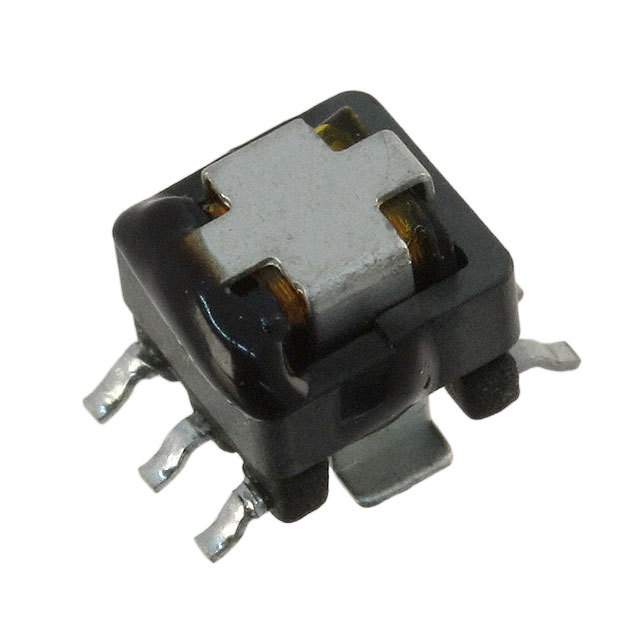

| Part Number | PA1005.100NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CURR SENSE XFMR 1:100 20A SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85298 pcs | Data sheet | PA1005.100NLT.pdf |
| Weight | 0.014 oz (0.4g) | Type | Invasive |
| Turns Ratio - Primary:Secondary | 1:100 | Termination Style | Gull Wing |
| Size / Dimension | 0.284" L x 0.330" W (7.21mm x 8.38mm) | Series | PA1005.XXXNL |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Other Names | 553-1529-2 PA1005.100NLT-ND PA1005100NLT |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance | 2mH |
| Height - Seated (Max) | 0.217" (5.50mm) | Frequency Range | 50kHz ~ 1MHz |
| Energy Time (E.T.) | - | Detailed Description | 20A 1:100 Current Sense Transformer 50kHz ~ 1MHz 0.75 mOhm Primary, 5.5 Ohm Secondary 2mH Surface Mount |
| DC Resistance (DCR) | 0.75 mOhm Primary, 5.5 Ohm Secondary | Current Ratio | - |
| Current Rating | 20A |
