PA0690

Pulse Electronics Corporation

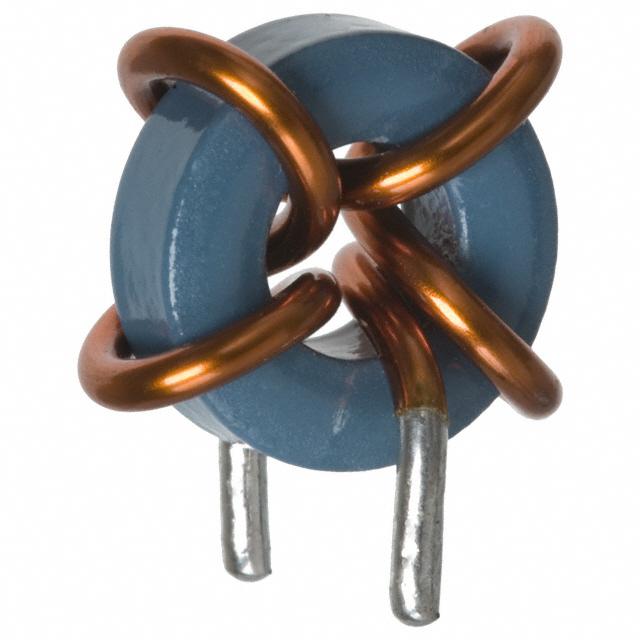

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA0690
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 500NH 22.5A 1.5 MOHM
Datasheets:	PA0690.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	5950 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5950 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA0690

Part Number	PA0690	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 500NH 22.5A 1.5 MOHM	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	5950 pcs	Data sheet	PA0690.pdf
Type	Toroidal	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.626" Dia x 0.346" W (15.90mm x 8.80mm)
Shielding	Unshielded	Series	Bare Coil
Ratings	-	Q @ Freq	-
Packaging	Tray	Package / Case	Radial
Other Names	553-1106	Operating Temperature	-40°C ~ 130°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Inductance	880nH	Height - Seated (Max)	-
Frequency - Self Resonant	-	Features	-
Detailed Description	880nH Unshielded Toroidal Inductor 22.5A 1.5 mOhm Max Radial	DC Resistance (DCR)	1.5 mOhm Max
Current Rating	22.5A	Current - Saturation	-
