PA0432LNL

Pulse Electronics Corporation

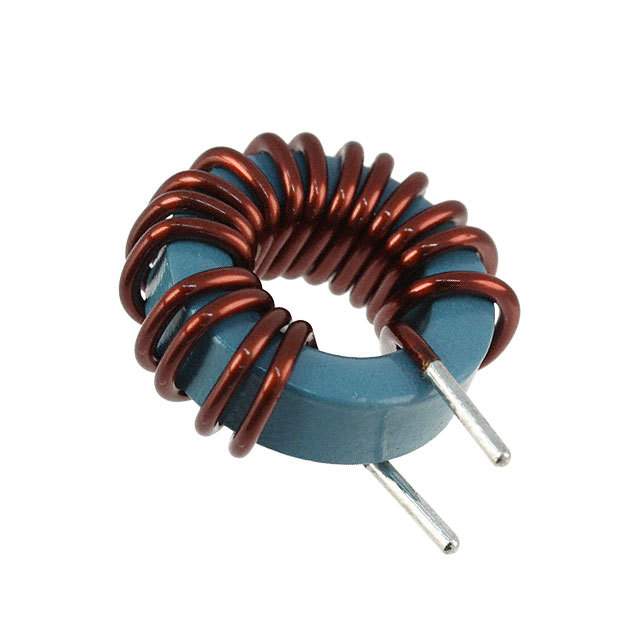

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PA0432LNL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	FIXED IND 5UH 20.5A 7.5 MOHM TH
Datasheets:	PA0432LNL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34948 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34948 pcs

Reference Price (In US Dollars)

1 pcs: $0.874

60 pcs: $0.632

120 pcs: $0.565

540 pcs: $0.458

1020 pcs: $0.417

2520 pcs: $0.404

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.874

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PA0432LNL

Part Number	PA0432LNL	Manufacturer	Pulse Electronics Corporation
Description	FIXED IND 5UH 20.5A 7.5 MOHM TH	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34948 pcs	Data sheet	PA0432LNL.pdf
Type	Toroidal	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.980" Dia x 0.441" W (24.90mm x 11.20mm)
Shielding	Unshielded	Series	Bare Coil
Ratings	-	Q @ Freq	-
Packaging	Tray	Package / Case	Radial
Other Names	553-1504	Operating Temperature	-40°C ~ 130°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	-	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	12.1µH
Height - Seated (Max)	-	Frequency - Self Resonant	-
Features	-	Detailed Description	12.1µH Unshielded Toroidal Inductor 20.5A 7.5 mOhm Max Radial
DC Resistance (DCR)	7.5 mOhm Max	Current Rating	20.5A
Current - Saturation	-
