P8228NL

Pulse Electronics Corporation

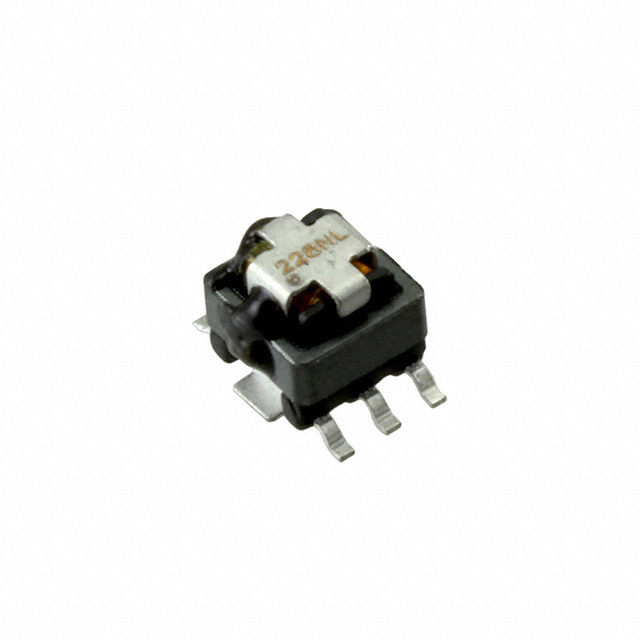

Image may be representation. See specifications for product details.

Product Overview

Part Number:	P8228NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR 1:100 10A SMD
Datasheets:	P8228NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	33993 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 33993 pcs

Reference Price (In US Dollars)

1 pcs: $0.885

10 pcs: $0.867

25 pcs: $0.581

50 pcs: $0.517

120 pcs: $0.473

360 pcs: $0.425

600 pcs: $0.416

1080 pcs: $0.301

5040 pcs: $0.266

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.885

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of P8228NL

Part Number	P8228NL	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR 1:100 10A SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33993 pcs	Data sheet	P8228NL.pdf
Type	Invasive	Turns Ratio - Primary:Secondary	1:100
Termination Style	Gull Wing	Size / Dimension	0.284" L x 0.330" W (7.21mm x 8.38mm)
Series	P822X	Ratings	-
Packaging	Tray	Other Names	553-2884
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	2mH	Height - Seated (Max)	0.190" (4.83mm)
Frequency Range	50kHz ~ 1MHz	Energy Time (E.T.)	-
Detailed Description	10A 1:100 Current Sense Transformer 50kHz ~ 1MHz 6 mOhm Primary, 5.5 Ohm Secondary 2mH Surface Mount	DC Resistance (DCR)	6 mOhm Primary, 5.5 Ohm Secondary
Current Ratio	-	Current Rating	10A

Shipment
After-Sales
Datasheets

★ FREE SHIPPING VIA DHL/FEDEX/UPS IF ORDER AMOUNT OVER 1,000 USD.
(ONLY FOR Integrated Circuits, Circuit Protection, RF/IF and RFID, Optoelectronics, Sensors, Transducers, Transformers, Isolators, Switches, Relays)

FEDEX	www.FedEx.com	From $35.00 basic shipping fee depend on zone and country.
DHL	www.DHL.com	From $35.00 basic shipping fee depend on zone and country.
UPS	www.UPS.com	From $35.00 basic shipping fee depend on zone and country.
TNT	www.TNT.com	From $35.00 basic shipping fee depend on zone and country.

★ Delivery time will need 2-4 Days to most of country all over the world by DHL/UPS/FEDEX/TNT.

Please feel free to contact us if you have any questions about the shipment. E-mail us [email protected]

AFTER-SALES GUARANTEE

Each product from Infinite-Electronics.net has been given a warranty period of 1 YEAR .During this period , we could provide free technical maintenance if there are any problems about our products.
If you find quality problems about our products after receiving them, you could test them and apply for unconditional refund if it can be proved.
If the products are defective or they don't working, you can return to us within 1 YEAR, all transportation and customs charges of the goods are borne by us.
