P1597NL

Pulse Electronics Corporation

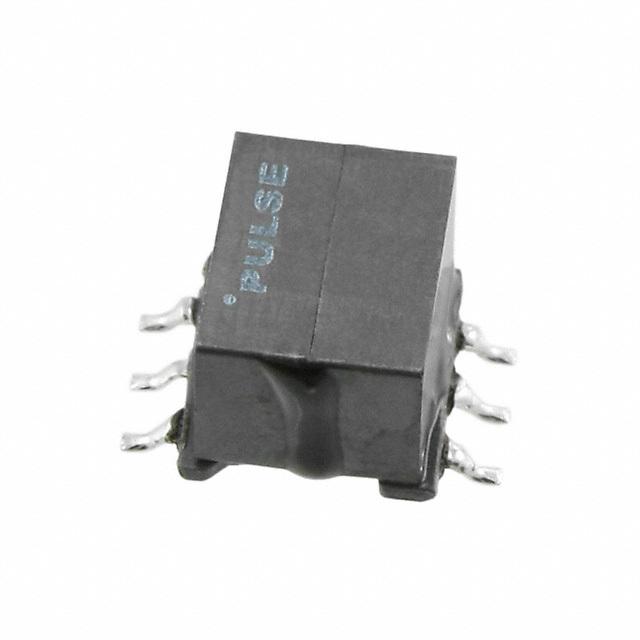

Image may be representation. See specifications for product details.

Product Overview

Part Number:	P1597NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	XFRMR FOR LINEAR TECH CHIPSET
Datasheets:	P1597NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29803 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29803 pcs

Reference Price (In US Dollars)

1 pcs: $1.102

10 pcs: $0.892

25 pcs: $0.721

80 pcs: $0.675

160 pcs: $0.645

320 pcs: $0.626

560 pcs: $0.607

1040 pcs: $0.588

5040 pcs: $0.541

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.102

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of P1597NL

Part Number	P1597NL	Manufacturer	Pulse Electronics Corporation
Description	XFRMR FOR LINEAR TECH CHIPSET	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29803 pcs	Data sheet	P1597NL.pdf
Voltage - Primary	-	Voltage - Isolation	2000Vrms
Voltage - Auxiliary	-	Type	For DC/DC Converters
Size / Dimension	0.453" L x 0.339" W (11.50mm x 8.60mm)	Series	-
Packaging	Tube	Other Names	553-1632-5 P1597NL-ND
Operating Temperature	-40°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Intended Chipset	LTC1535
Inductance @ Frequency	-	Height - Seated (Max)	0.354" (9.00mm)
Frequency	-	Footprint	0.453" L x 0.512" W (11.50mm x 13.00mm)
Chipset Manufacturer	Linear Technology	Applications	Isolation
