Pulse Electronics Corporation
| Part Number | P0770.153NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 15UH 900MA 230 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 240005 pcs | Data sheet | P0770.153NLT.pdf |
| Type | Wirewound | Tolerance | ±20% |
| Supplier Device Package | - | Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Shielding | Unshielded | Series | P0770NL |
| Ratings | - | Q @ Freq | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 553-1944-2 P0770.153NL P0770.153NLT-ND P0770153NLT |
Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 15µH | Height - Seated (Max) | 0.115" (2.92mm) |
| Frequency - Self Resonant | - | Features | - |

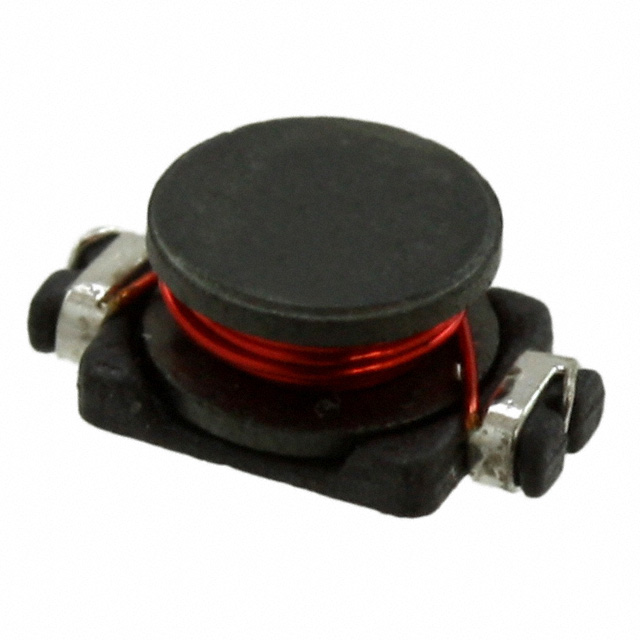

| Detailed Description | 15µH Unshielded Wirewound Inductor 900mA 230 mOhm Max Nonstandard | DC Resistance (DCR) | 230 mOhm Max |
| Current Rating | 900mA | Current - Saturation | 900mA |
