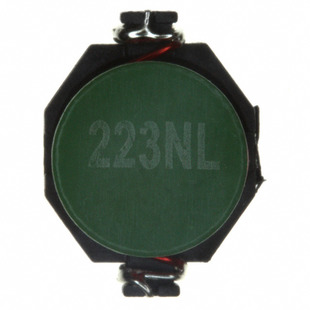

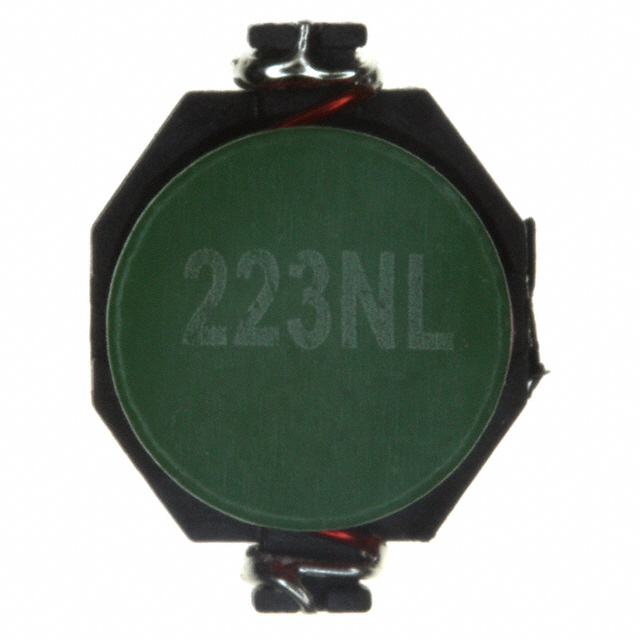

Pulse Electronics Corporation
| Part Number | P0751.223NLT | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | FIXED IND 22UH 2.6A 114 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 214665 pcs | Data sheet | P0751.223NLT.pdf |
| Type | Wirewound | Tolerance | ±20% |
| Supplier Device Package | - | Size / Dimension | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| Shielding | Unshielded | Series | P0751NL |
| Ratings | - | Q @ Freq | - |
| Packaging | Tape & Reel (TR) | Package / Case | Nonstandard |
| Other Names | 553-1063-2 P0751.223TNL P0751223NLT |
Operating Temperature | -40°C ~ 130°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Core | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 100kHz |
| Inductance | 22µH | Height - Seated (Max) | 0.215" (5.46mm) |
| Frequency - Self Resonant | - | Features | - |
| Detailed Description | 22µH Unshielded Wirewound Inductor 2.6A 114 mOhm Max Nonstandard | DC Resistance (DCR) | 114 mOhm Max |
| Current Rating | 2.6A | Current - Saturation | 2.6A |
