P0583NL

Pulse Electronics Corporation

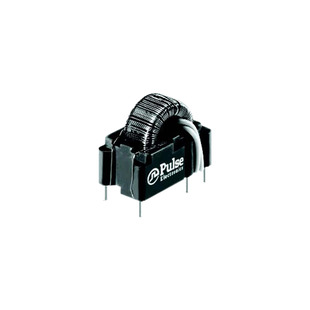

Image may be representation. See specifications for product details.

Product Overview

Part Number:	P0583NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CURR SENSE XFMR 50:1:1 36A T/H
Datasheets:	P0583NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	28261 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 28261 pcs

Reference Price (In US Dollars)

1 pcs: $1.235

10 pcs: $1.002

25 pcs: $0.81

80 pcs: $0.759

160 pcs: $0.725

320 pcs: $0.703

560 pcs: $0.682

1040 pcs: $0.661

5040 pcs: $0.607

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.235

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of P0583NL

Part Number	P0583NL	Manufacturer	Pulse Electronics Corporation
Description	CURR SENSE XFMR 50:1:1 36A T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28261 pcs	Data sheet	P0583NL.pdf
Weight	0.011 lb (4.99g)	Type	Invasive
Turns Ratio - Primary:Secondary	50:1:1	Termination Style	PC Pin
Size / Dimension	0.810" L x 0.580" W (20.57mm x 14.73mm)	Series	THT
Ratings	-	Packaging	Tray
Other Names	553-2660 P0583NL-ND	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	5mH
Height - Seated (Max)	0.750" (19.05mm)	Frequency Range	50kHz ~ 500kHz
Energy Time (E.T.)	-	Detailed Description	36A 50:1:1 Current Sense Transformer 50kHz ~ 500kHz 700 mOhm Primary, 1.7 mOhm Secondary 5mH Through Hole
DC Resistance (DCR)	700 mOhm Primary, 1.7 mOhm Secondary	Current Ratio	-
Current Rating	36A
