P0502NLT

Pulse Electronics Corporation

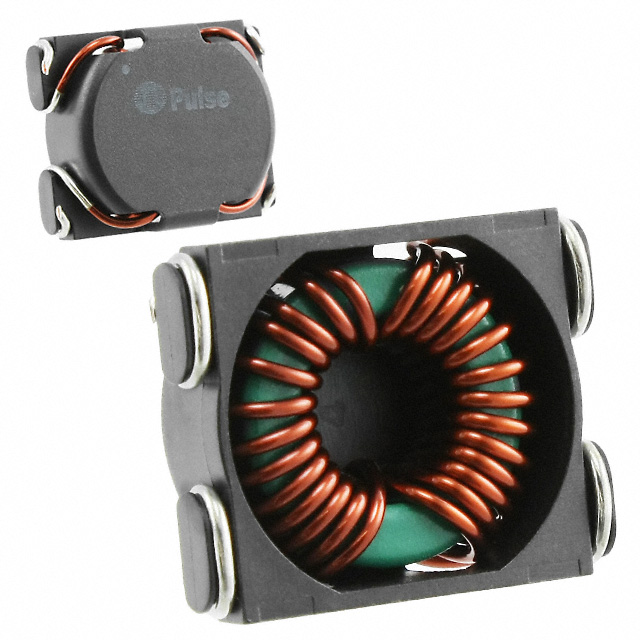

Image may be representation. See specifications for product details.

Product Overview

Part Number:	P0502NLT
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	COMMON MODE CHOKE 14A 2LN SMD
Datasheets:	P0502NLT.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23444 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23444 pcs

Reference Price (In US Dollars)

75 pcs: $1.30

150 pcs: $1.228

375 pcs: $1.156

525 pcs: $1.12

750 pcs: $1.084

1875 pcs: $1.048

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.30

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of P0502NLT

Part Number	P0502NLT	Manufacturer	Pulse Electronics Corporation
Description	COMMON MODE CHOKE 14A 2LN SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23444 pcs	Data sheet	P0502NLT.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	1.220" L x 1.000" W (30.99mm x 25.40mm)	Series	-
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Horizontal, 4 PC Pad	Other Names	553-1939-2 P0502NLT-ND
Operating Temperature	-40°C ~ 120°C	Number of Lines	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height (Max)	0.500" (12.70mm)	Filter Type	Power Line
Features	-	Detailed Description	2 Line Common Mode Choke Surface Mount 14A DCR 8 mOhm
DC Resistance (DCR) (Max)	8 mOhm	Current Rating (Max)	14A
Approvals	-
