JXD6-0001NL

Pulse Electronics Corporation

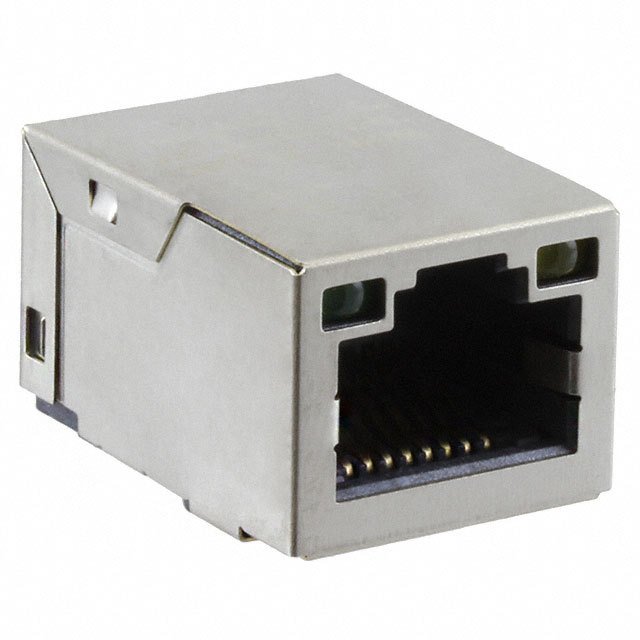

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JXD6-0001NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CONN,SMD RJ45,1X1,100D,1:1,GY,EM
Datasheets:	JXD6-0001NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	17882 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 17882 pcs

Reference Price (In US Dollars)

1 pcs: $1.943

10 pcs: $1.864

25 pcs: $1.709

50 pcs: $1.631

100 pcs: $1.553

250 pcs: $1.359

500 pcs: $1.32

1000 pcs: $1.126

2500 pcs: $1.048

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.943

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JXD6-0001NL

Part Number	JXD6-0001NL	Manufacturer	Pulse Electronics Corporation
Description	CONN,SMD RJ45,1X1,100D,1:1,GY,EM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17882 pcs	Data sheet	JXD6-0001NL.pdf
Termination	Solder	Tab Direction	Up
Shielding	Shielded, EMI Finger	Shield Material	Brass
Series	PULSEJACK™ JXD6	Packaging	Tray
Other Names	553-3744	Orientation	90° Angle (Right)
Operating Temperature	-40°C ~ 85°C	Number of Rows	1
Number of Ports	1	Number of Cores per Jack	4
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	LED Color	Green - Yellow
Housing Material	Liquid Crystal Polymer (LCP)	Height Above Board	0.549" (13.95mm)
Features	Board Guide	Detailed Description	1 Port RJ45 Magjack Connector Surface Mount
Contact Material	Copper Alloy	Contact Finish Thickness	6.00µin (0.152µm)
Contact Finish	Gold	Connector Type	RJ45
Applications	-
