JXD0-0029NL

Pulse Electronics Corporation

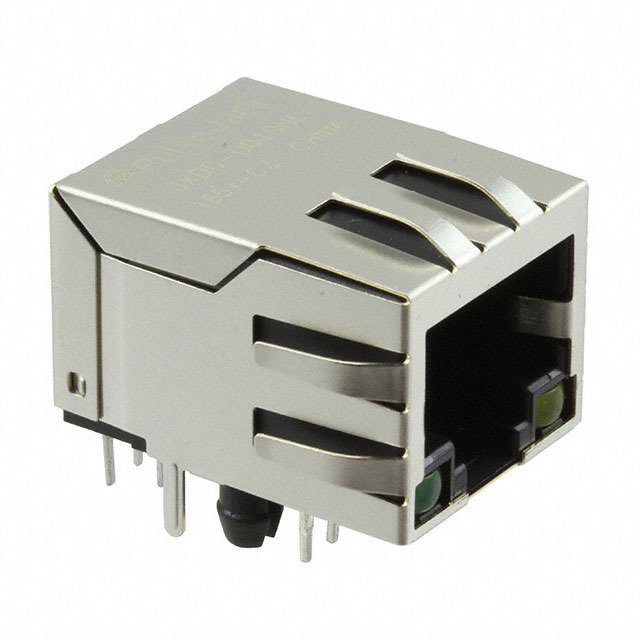

Image may be representation. See specifications for product details.

Product Overview

Part Number:	JXD0-0029NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CONN MAGJACK 1PORT 1000 BASE-T
Datasheets:	1.JXD0-0029NL.pdf 2.JXD0-0029NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	14198 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14198 pcs

Reference Price (In US Dollars)

1 pcs: $2.767

10 pcs: $2.65

25 pcs: $2.42

50 pcs: $2.305

100 pcs: $2.189

250 pcs: $1.959

500 pcs: $1.844

1000 pcs: $1.613

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.767

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of JXD0-0029NL

Part Number	JXD0-0029NL	Manufacturer	Pulse Electronics Corporation
Description	CONN MAGJACK 1PORT 1000 BASE-T	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	14198 pcs	Data sheet	1.JXD0-0029NL.pdf 2.JXD0-0029NL.pdf
Termination	Solder	Tab Direction	Down
Shielding	Shielded	Shield Material	Brass
Series	PULSEJACK™ JXD0	Packaging	Tray
Other Names	1840-1006	Orientation	90° Angle (Right)
Operating Temperature	-40°C ~ 85°C	Number of Rows	1
Number of Ports	1	Number of Cores per Jack	8
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
LED Color	Green - Yellow	Housing Material	Thermoplastic
Height Above Board	0.537" (13.65mm)	Features	Board Lock
Detailed Description	1 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX	Contact Material	Phosphor Bronze
Contact Finish Thickness	30.0µin (0.76µm)	Contact Finish	Gold
Connector Type	RJ45	Applications	10/100/1000 Base-T, AutoMDIX
