Pulse Electronics Corporation

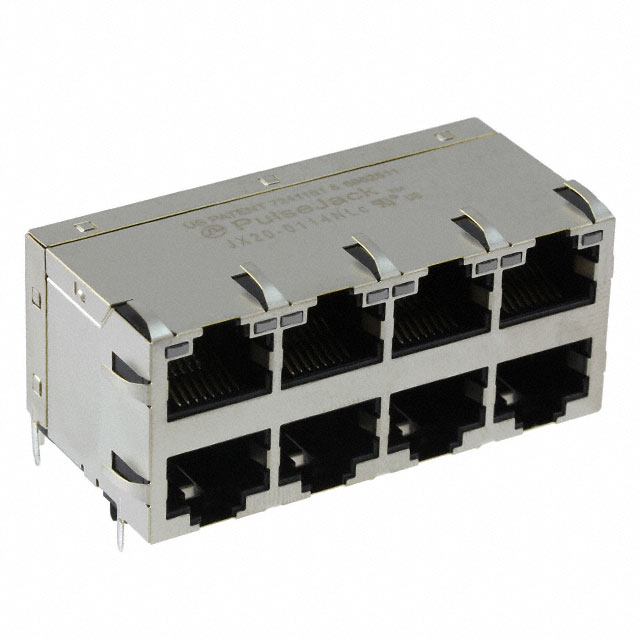

| Part Number | JX20-0114NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 8PORT 100 BASE-TX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2563 pcs | Data sheet | JX20-0114NL.pdf |
| Termination | Solder | Tab Direction | Up and Down |
| Shielding | Shielded, EMI Finger | Shield Material | Brass |
| Series | PULSEJACK™ JX2 | Packaging | Tray |
| Other Names | 553-2657 JX20-0114NL-ND JX200114NL |
Orientation | 90° Angle (Right) |
| Operating Temperature | -40°C ~ 85°C | Number of Rows | 2 |
| Number of Ports | 8 | Number of Cores per Jack | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| LED Color | Green, Yellow - Green, Yellow | Housing Material | Thermoplastic |
| Height Above Board | 1.005" (25.53mm) | Features | Board Guide |
| Detailed Description | 8 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | RJ45 | Applications | 10/100 Base-TX, AutoMDIX |
