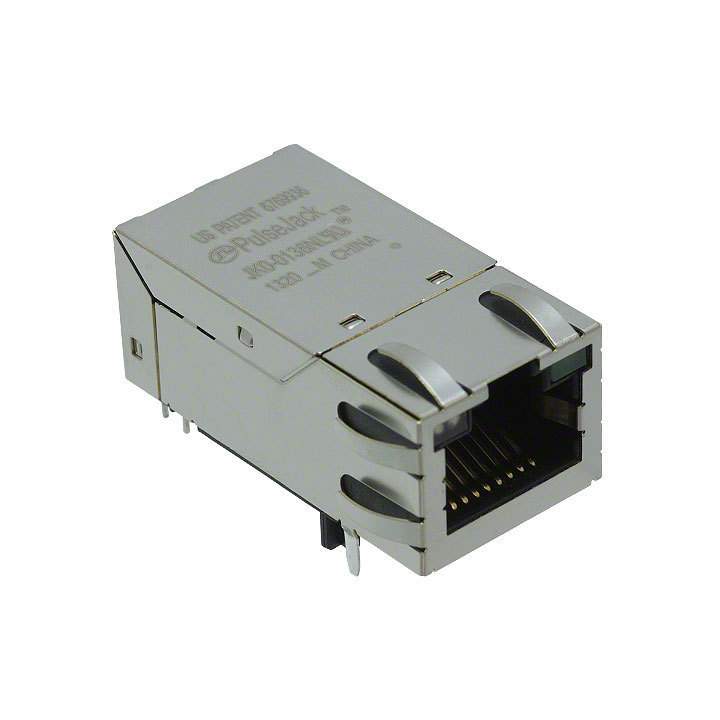

Pulse Electronics Corporation
| Part Number | JK0-0136NL | Manufacturer | Pulse Electronics Corporation |
|---|---|---|---|
| Description | CONN MAGJACK 1 PORT 1000 BASE-T | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 8453 pcs | Data sheet | JK0-0136NL.pdf |
| Termination | Solder | Tab Direction | Up |
| Shielding | Shielded, EMI Finger | Shield Material | Brass |
| Series | PULSEJACK™ JK0 | Packaging | Bulk |
| Other Names | 553-2128-5 553.-2128-5 553.-2128-5-ND JK00136NL |
Orientation | 90° Angle (Right) |
| Operating Temperature | 0°C ~ 70°C | Number of Rows | 1 |
| Number of Ports | 1 | Number of Cores per Jack | 8 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| LED Color | Yellow, Green - Green | Housing Material | Thermoplastic |
| Height Above Board | 0.546" (13.87mm) | Features | Board Guide |
| Detailed Description | 1 Port RJ45 Magjack Connector Through Hole 10/100/1000 Base-T, AutoMDIX | Contact Material | Phosphor Bronze |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | RJ45 | Applications | 10/100/1000 Base-T, AutoMDIX |
