J20-0014

Pulse Electronics Corporation

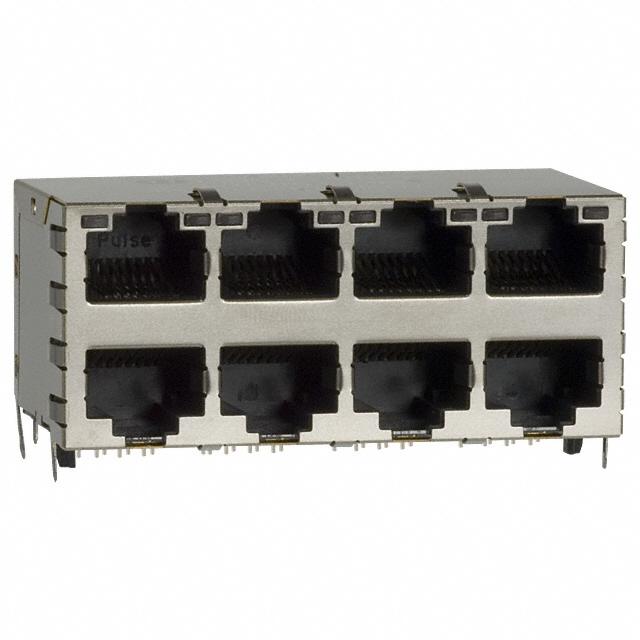

Image may be representation. See specifications for product details.

Product Overview

Part Number:	J20-0014
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CONN MAGJACK 8PORT 100 BASE-TX
Datasheets:	J20-0014.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	6794 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 6794 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of J20-0014

Part Number	J20-0014	Manufacturer	Pulse Electronics Corporation
Description	CONN MAGJACK 8PORT 100 BASE-TX	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	6794 pcs	Data sheet	J20-0014.pdf
Termination	Solder	Tab Direction	Up and Down
Shielding	Shielded, EMI Finger	Shield Material	Brass
Series	PULSEJACK™ J2	Packaging	Bulk
Other Names	553-1249 J200014	Orientation	90° Angle (Right)
Operating Temperature	0°C ~ 70°C	Number of Rows	2
Number of Ports	8	Number of Cores per Jack	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	LED Color	Green, Yellow - Green, Yellow
Housing Material	Thermoplastic	Height Above Board	1.005" (25.53mm)
Features	Board Guide	Detailed Description	8 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX
Contact Material	Phosphor Bronze	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold	Connector Type	RJ45
Applications	10/100 Base-TX, AutoMDIX
