J1011F01PNL

Pulse Electronics Corporation

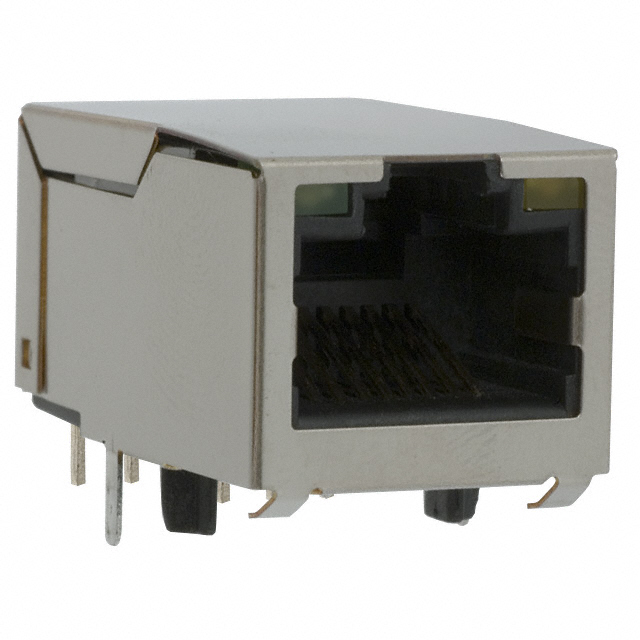

Image may be representation. See specifications for product details.

Product Overview

Part Number:	J1011F01PNL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	CONN MAGJACK 1PORT 100 BASE-TX
Datasheets:	J1011F01PNL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12118 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12118 pcs

Reference Price (In US Dollars)

1 pcs: $2.843

10 pcs: $2.725

30 pcs: $2.488

60 pcs: $2.37

120 pcs: $2.251

270 pcs: $2.014

510 pcs: $1.896

1020 pcs: $1.659

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.843

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of J1011F01PNL

Part Number	J1011F01PNL	Manufacturer	Pulse Electronics Corporation
Description	CONN MAGJACK 1PORT 100 BASE-TX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12118 pcs	Data sheet	J1011F01PNL.pdf
Termination	Solder	Tab Direction	Up
Shielding	Shielded	Shield Material	Brass
Series	PULSEJACK™ J1	Packaging	Bulk
Other Names	553-1350	Orientation	90° Angle (Right)
Operating Temperature	0°C ~ 70°C	Number of Rows	1
Number of Ports	1	Number of Cores per Jack	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
LED Color	Green - Yellow	Housing Material	Thermoplastic
Height Above Board	0.550" (13.97mm)	Features	Board Guide
Detailed Description	1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX	Contact Material	Phosphor Bronze
Contact Finish Thickness	15.0µin (0.38µm)	Contact Finish	Gold
Connector Type	RJ45	Applications	10/100 Base-TX, AutoMDIX
