HM5149NL

Pulse Electronics Corporation

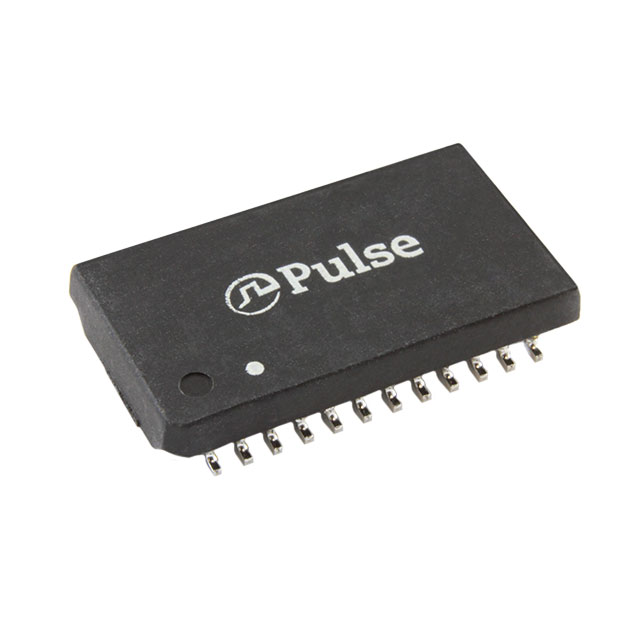

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HM5149NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheets:	HM5149NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10812 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10812 pcs

Reference Price (In US Dollars)

1 pcs: $3.009

10 pcs: $2.339

25 pcs: $2.276

50 pcs: $1.96

100 pcs: $1.871

250 pcs: $1.833

500 pcs: $1.802

1000 pcs: $1.77

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.009

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HM5149NL

Part Number	HM5149NL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1CT:1CT TX 1CT:1CT RX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10812 pcs	Data sheet	HM5149NL.pdf
Weight	-	Turns Ratio - Primary:Secondary	1CT:1CT Transmitter, 1CT:1CT Receiver
Transformer Type	LAN 10/100/1000 Base-T	Size / Dimension	0.700" L x 0.390" W (17.78mm x 9.91mm)
Series	-	Packaging	Tube
Other Names	553-3327 553-3327-5	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	21 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	360µH	Height - Seated (Max)	0.126" (3.20mm)
Energy Time (E.T.)	-
