HM1188NL

Pulse Electronics Corporation

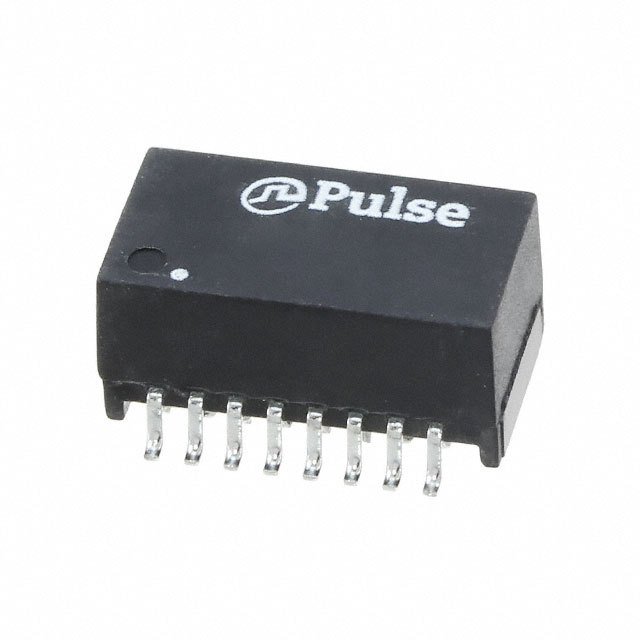

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HM1188NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheets:	1.HM1188NL.pdf 2.HM1188NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18413 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18413 pcs

Reference Price (In US Dollars)

1 pcs: $1.951

10 pcs: $1.483

40 pcs: $1.444

80 pcs: $1.326

120 pcs: $1.248

280 pcs: $1.209

520 pcs: $1.17

1000 pcs: $1.131

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.951

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HM1188NL

Part Number	HM1188NL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1CT:1CT TX 1CT:1CT RX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18413 pcs	Data sheet	1.HM1188NL.pdf 2.HM1188NL.pdf
Weight	-	Turns Ratio - Primary:Secondary	1CT:1CT Transmitter, 1CT:1CT Receiver
Transformer Type	LAN 10/100 Base-T	Size / Dimension	0.500" L x 0.280" W (12.70mm x 7.11mm)
Series	-	Packaging	Tube
Other Names	553-3326 553-3326-5	Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	21 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	350µH	Height - Seated (Max)	0.235" (5.97mm)
Energy Time (E.T.)	-
