HD8005FNL

Pulse Electronics Corporation

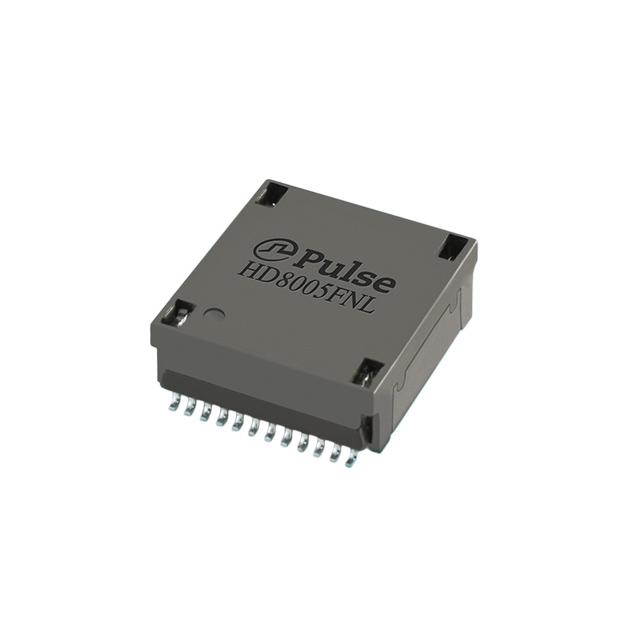

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HD8005FNL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Datasheets:	HD8005FNL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10792 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10792 pcs

Reference Price (In US Dollars)

1 pcs: $3.215

10 pcs: $2.499

35 pcs: $2.432

70 pcs: $2.094

105 pcs: $2.00

280 pcs: $1.959

525 pcs: $1.925

1015 pcs: $1.891

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.215

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HD8005FNL

Part Number	HD8005FNL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1CT:1CT TX 1CT:1CT RX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10792 pcs	Data sheet	HD8005FNL.pdf
Weight	-	Turns Ratio - Primary:Secondary	1CT:1CT Transmitter, 1CT:1CT Receiver
Transformer Type	HDBase-T	Size / Dimension	0.539" L x 0.591" W (13.70mm x 15.00mm)
Series	-	Packaging	Tube
Other Names	553-3245-5 HD8005FNL-ND	Operating Temperature	0°C ~ 70°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance	100µH	Height - Seated (Max)	0.225" (5.72mm)
Energy Time (E.T.)	-
