H5020FNL

Pulse Electronics Corporation

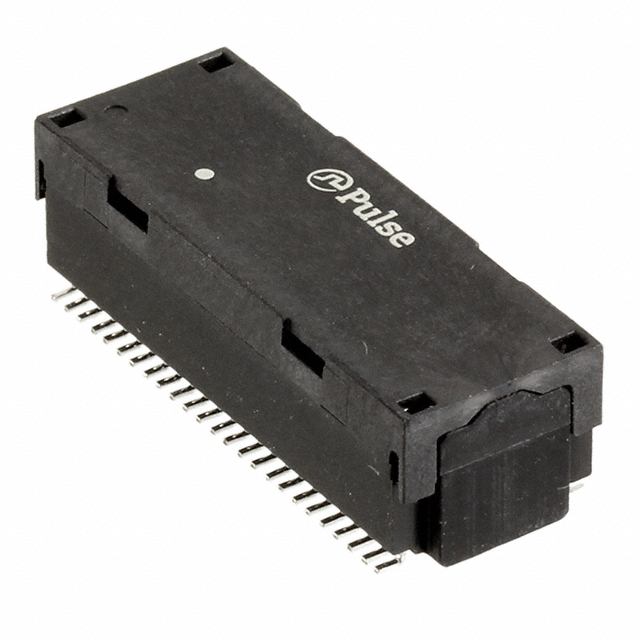

Image may be representation. See specifications for product details.

Product Overview

Part Number:	H5020FNL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	PULSE XFMR 1CT:1 TX 1CT:1 RX
Datasheets:	H5020FNL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5829 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5829 pcs

Reference Price (In US Dollars)

1 pcs: $5.722

15 pcs: $4.227

30 pcs: $3.901

60 pcs: $3.771

105 pcs: $3.667

255 pcs: $3.615

510 pcs: $3.576

1005 pcs: $3.511

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.722

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of H5020FNL

Part Number	H5020FNL	Manufacturer	Pulse Electronics Corporation
Description	PULSE XFMR 1CT:1 TX 1CT:1 RX	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5829 pcs	Data sheet	H5020FNL.pdf
Weight	-	Turns Ratio - Primary:Secondary	1CT:1 Transmitter, 1CT:1 Receiver
Transformer Type	LAN 10/100/1000 Base-T	Size / Dimension	1.100" L x 0.395" W (27.94mm x 10.03mm)
Series	-	Other Names	553-2233
Operating Temperature	0°C ~ 70°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	13 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	350µH
Height - Seated (Max)	0.340" (8.64mm)	Energy Time (E.T.)	-
