78Z1122B-01NL

Pulse Electronics Corporation

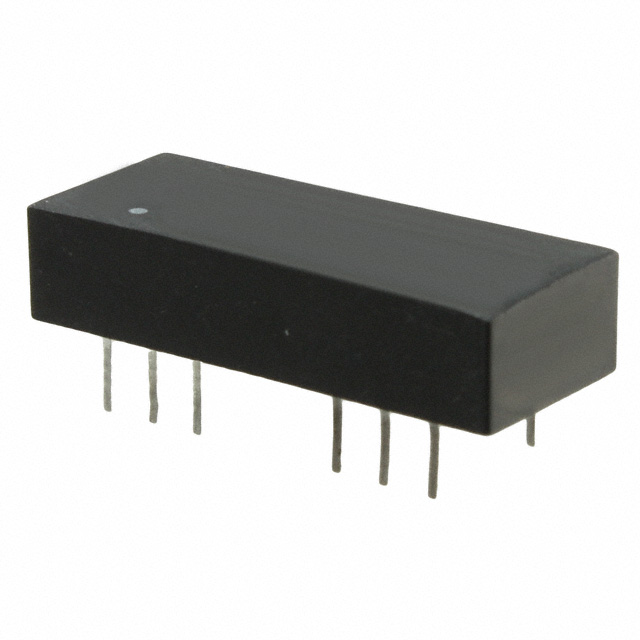

Image may be representation. See specifications for product details.

Product Overview

Part Number:	78Z1122B-01NL
Manufacturer/Brand:	Pulse Electronics Corporation
Product description	MODULE FILTER SINGLE LAN 16-DIL
Datasheets:	78Z1122B-01NL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3709 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3709 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 78Z1122B-01NL

Part Number	78Z1122B-01NL	Manufacturer	Pulse Electronics Corporation
Description	MODULE FILTER SINGLE LAN 16-DIL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3709 pcs	Data sheet	78Z1122B-01NL.pdf
Weight	0.1 oz (2.85g)	Turns Ratio - Primary:Secondary	1CT:1CT
Transformer Type	Isolation and Data Interface (Encapsulated)	Size / Dimension	1.000" L x 0.400" W (25.40mm x 10.16mm)
Series	-	Packaging	Tube
Other Names	553-2119 78Z1122B-01NL-ND 78Z1122B01NL	Operating Temperature	0°C ~ 70°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance	-
Height - Seated (Max)	0.250" (6.35mm)	Energy Time (E.T.)	-
