802-10-072-65-001101

Preci-Dip

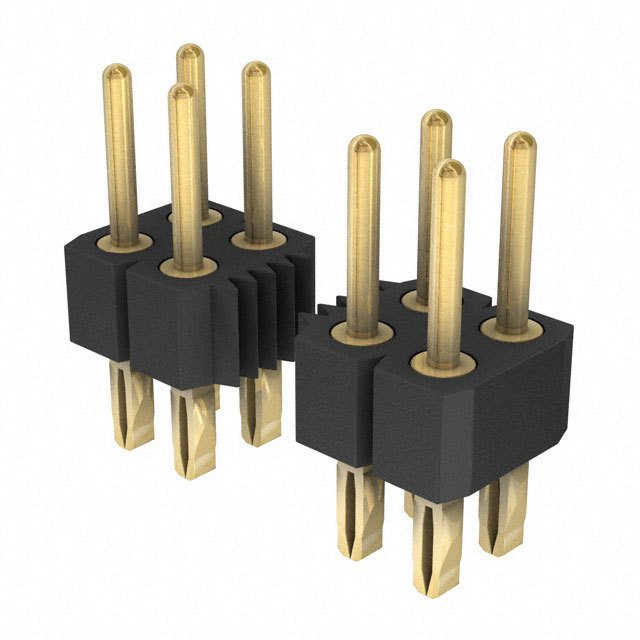

Image may be representation. See specifications for product details.

Product Overview

Part Number:	802-10-072-65-001101
Manufacturer/Brand:	Preci-Dip
Product description	CONN HDR 72POS 0.100 PRESS FIT
Datasheets:	802-10-072-65-001101.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7036 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 7036 pcs

Reference Price (In US Dollars)

1 pcs: $4.707

10 pcs: $4.28

100 pcs: $3.638

500 pcs: $3.103

1000 pcs: $2.846

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.707

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 802-10-072-65-001101

Part Number	802-10-072-65-001101	Manufacturer	Preci-Dip
Description	CONN HDR 72POS 0.100 PRESS FIT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7036 pcs	Data sheet	802-10-072-65-001101.pdf
Voltage Rating	150VDC	Termination	Press-Fit, Solder
Style	Board to Board	Shrouding	Unshrouded
Series	802	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.427" (10.85mm)	Other Names	1212-1495 802-10-072-65-001101-ND
Operating Temperature	-55°C ~ 125°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	72
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled	Insulation Height	0.110" (2.79mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 72 position 0.100" (2.54mm)	Current Rating	3A
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Bronze	Contact Length - Post	0.110" (2.79mm)
Contact Length - Mating	0.191" (4.85mm)	Contact Finish Thickness - Post	10.0µin (0.25µm)
Contact Finish Thickness - Mating	10.0µin (0.25µm)	Contact Finish - Post	Gold
Contact Finish - Mating	Gold	Connector Type	Header
Applications	-
