Preci-Dip
| Part Number | 456-V3-206-00-014101 | Manufacturer | Preci-Dip |
|---|---|---|---|

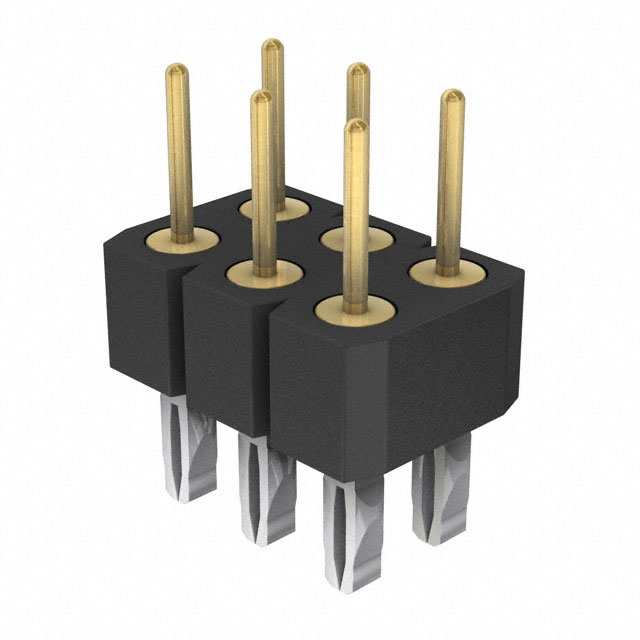

| Description | CONN HDR 6POS 2.54MM PRESS FIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 83397 pcs | Data sheet | 456-V3-206-00-014101.pdf |
| Voltage Rating | 150VDC | Termination | Press-Fit, Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | 456 | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Bulk |
| Overall Contact Length | 0.378" (9.60mm) | Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Insulation Height | 0.110" (2.79mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 6 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Bronze |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.141" (3.60mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
