TOP258GN-TL

Power Integrations

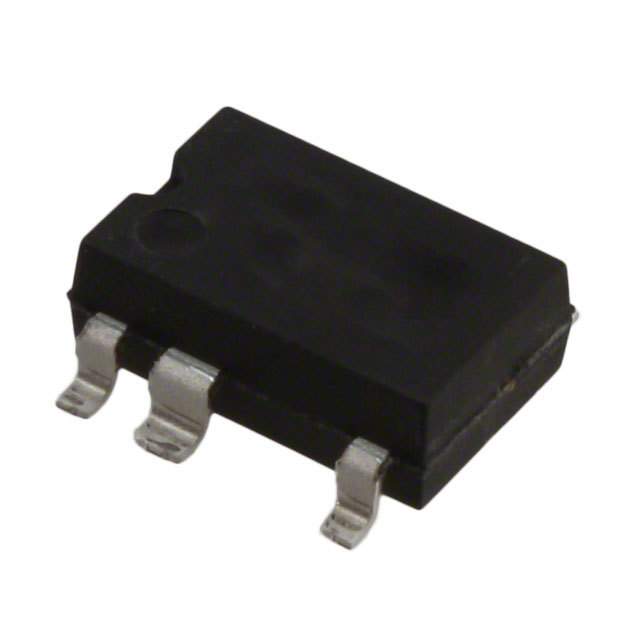

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TOP258GN-TL
Manufacturer/Brand:	Power Integrations
Product description	IC OFFLINE SWIT PROG OVP 8SMD
Datasheets:	TOP258GN-TL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31237 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 31237 pcs

Reference Price (In US Dollars)

1 pcs: $1.21

10 pcs: $1.08

25 pcs: $0.972

100 pcs: $0.886

250 pcs: $0.799

500 pcs: $0.717

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.21

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TOP258GN-TL

Part Number	TOP258GN-TL	Manufacturer	Power Integrations
Description	IC OFFLINE SWIT PROG OVP 8SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31237 pcs	Data sheet	TOP258GN-TL.pdf
Voltage - Supply (Vcc/Vdd)	-	Voltage - Breakdown	700V
Topology	Flyback	Supplier Device Package	SMD-8C
Series	TOPSwitch®-HX	Power (Watts)	48W
Packaging	Cut Tape (CT)	Package / Case	8-SMD (7 Leads), Gull Wing
Output Isolation	Isolated	Other Names	596-1190-1
Operating Temperature	-40°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	4 (72 Hours)	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Internal Switch(s)	Yes
Frequency - Switching	66kHz	Fault Protection	Current Limiting, Over Temperature, Over Voltage
Duty Cycle	78%	Detailed Description	Converter Offline Flyback Topology 66kHz SMD-8C
Control Features	-
