SID1102K-TL

Power Integrations

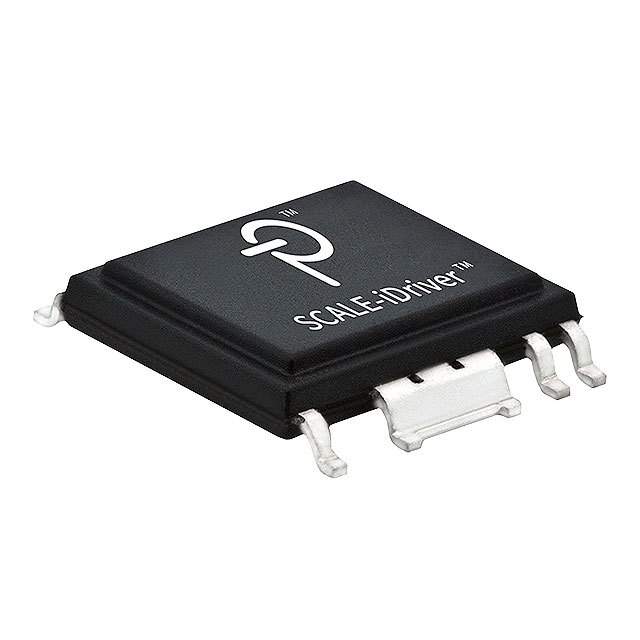

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SID1102K-TL
Manufacturer/Brand:	Power Integrations
Product description	DGTL ISO GATE DRVR
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36010 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 36010 pcs

Reference Price (In US Dollars)

1000 pcs: $0.91

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.91

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SID1102K-TL

Part Number	SID1102K-TL	Manufacturer	Power Integrations
Description	DGTL ISO GATE DRVR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36010 pcs	Data sheet
Voltage - Supply	4.75 V ~ 5.25 V	Voltage - Isolation	1000Vrms
Voltage - Forward (Vf) (Typ)	-	Technology	Magnetic Coupling
Supplier Device Package	eSOP-R16B	Series	SCALE-iDriver™
Rise / Fall Time (Typ)	29ns, 14ns	Pulse Width Distortion (Max)	-
Propagation Delay tpLH / tpHL (Max)	350ns, 350ns	Packaging	Tape & Reel (TR)
Package / Case	16-PowerSOIC (0.350", 8.89mm Width), 15 Leads	Other Names	1810-1076-2
Operating Temperature	-40°C ~ 125°C	Number of Channels	1
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Gate Driver Magnetic Coupling 1000Vrms 1 Channel eSOP-R16B	Current - Peak Output	-
Current - Output High, Low	5A, 5A	Common Mode Transient Immunity (Min)	100kV/µs
Approvals	VDE
