IGD515EI

Power Integrations

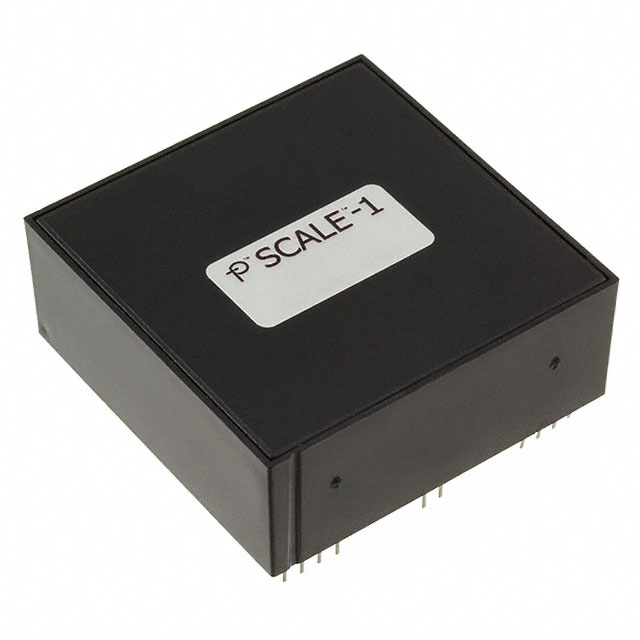

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IGD515EI
Manufacturer/Brand:	Power Integrations
Product description	IC SINGLE GATE DRIVER 15A
Datasheets:	IGD515EI.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	490 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 490 pcs

Reference Price (In US Dollars)

1 pcs: $64.008

10 pcs: $54.406

40 pcs: $51.206

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$64.008

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IGD515EI

Part Number	IGD515EI	Manufacturer	Power Integrations
Description	IC SINGLE GATE DRIVER 15A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	490 pcs	Data sheet	IGD515EI.pdf
Voltage - Supply	12 V ~ 16 V	Supplier Device Package	Module
Series	SCALE™-1	Rise / Fall Time (Typ)	40ns, 40ns
Packaging	Bulk	Package / Case	Module
Other Names	1810-1057 IGD515EI-ND	Operating Temperature	-40°C ~ 85°C (TA)
Number of Drivers	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Logic Voltage - VIL, VIH	0.9V, 3.8V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Input Type	-
Gate Type	IGBT, N-Channel, P-Channel MOSFET	Driven Configuration	High-Side or Low-Side
Detailed Description	High-Side or Low-Side Gate Driver IC Module	Current - Peak Output (Source, Sink)	15A, 15A
Channel Type	Single
