42S048D2U

PortescapPortescap

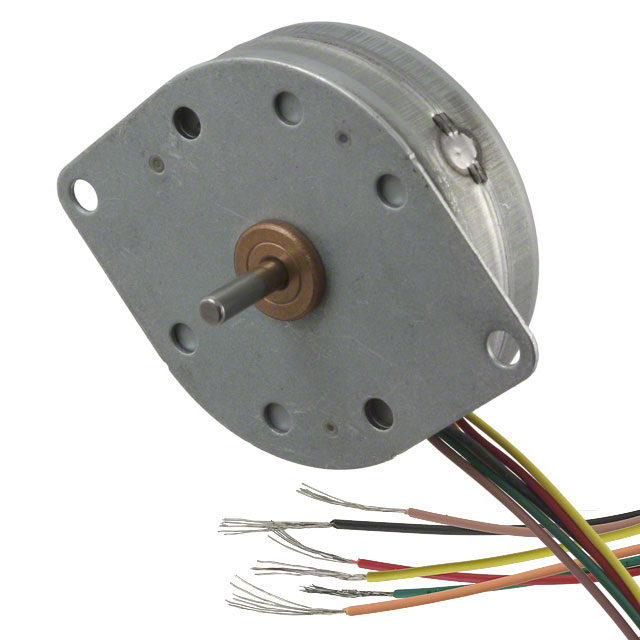

42S048D2U Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 42S048D2U
Manufacturer/Brand: Portescap
Product description STEPPER MOTOR PM UNIPOLAR 12V
Datasheets: 1.42S048D2U.pdf2.42S048D2U.pdf3.42S048D2U.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 4147 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4147 pcs
Reference Price (In US Dollars)
100 pcs
$7.867
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$7.867

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 42S048D2U

Part Number 42S048D2U Manufacturer Portescap
Description STEPPER MOTOR PM UNIPOLAR 12V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 4147 pcs Data sheet 1.42S048D2U.pdf2.42S048D2U.pdf3.42S048D2U.pdf
Weight 0.193 lb (87.54g) Voltage - Rated 12VDC
Type Permanent Magnet Torque - Holding (oz-in / mNm) 6.3 / 44.5
Termination Style Wire Leads Steps per Revolution 48
Step Angle 7.5° Size / Dimension Round - 1.650" Dia (42.00mm)
Series 42S Rotor Inertia 9.5gcm²
Other Names 403-1011 Operating Temperature -20°C ~ 70°C
Mounting Hole Spacing 1.950" (49.48mm) Manufacturer Standard Lead Time 12 Weeks
Length - Shaft and Bearing 0.450" (11.43mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Features Round Shaft Diameter - Shaft 0.118" (3.00mm)
Detailed Description Unipolar Stepper Motor 160mA 12VDC Current Rating 160mA
Coil Type Unipolar Coil Resistance 75 Ohms
Approvals - Accuracy ±15%
