Portescap

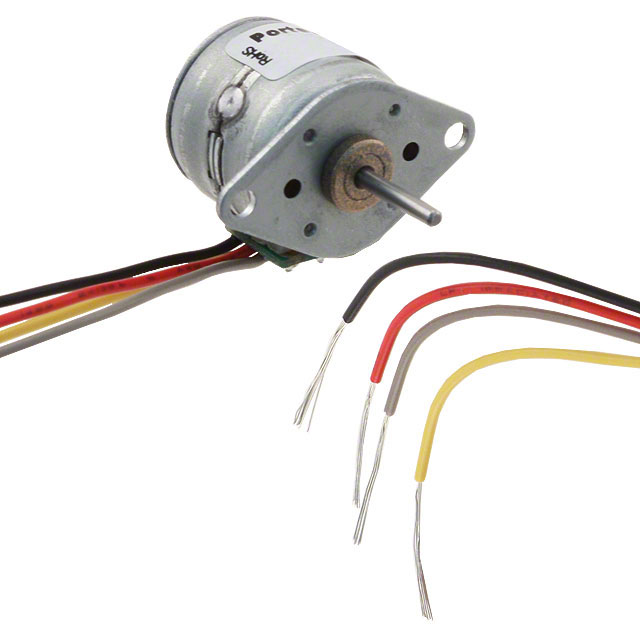

| Part Number | 15M020D1B-N | Manufacturer | Portescap |
|---|---|---|---|
| Description | STEPPER MOTOR PM BIPOLAR 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4993 pcs | Data sheet | 1.15M020D1B-N.pdf2.15M020D1B-N.pdf3.15M020D1B-N.pdf |
| Weight | 0.031 lb (14.06g) | Voltage - Rated | 5VDC |
| Type | Permanent Magnet | Torque - Holding (oz-in / mNm) | 0.55 / 3.9 |
| Termination Style | Wire Leads | Steps per Revolution | 20 |
| Step Angle | 18° | Size / Dimension | Round - 0.610" Dia (15.50mm) |
| Series | 15M | Rotor Inertia | 0.115gcm² |
| Other Names | 15020D1B-N 15M020D1B 403-1000 |
Operating Temperature | -20°C ~ 70°C |
| Mounting Hole Spacing | 0.787" (20.00mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Length - Shaft and Bearing | 0.394" (10.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Round Shaft | Diameter - Shaft | 0.059" (1.50mm) |
| Detailed Description | Bipolar Stepper Motor 125mA 5VDC | Current Rating | 125mA |
| Coil Type | Bipolar | Coil Resistance | 40 Ohms |
| Approvals | - | Accuracy | - |
