Pomona Electronics
| Part Number | 5219 | Manufacturer | Pomona Electronics |
|---|---|---|---|
| Description | CONN BNC TRIAX JACK STR 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3751 pcs | Data sheet | 5219.pdf |
| Voltage Rating | 500V | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | 501-1312 5219PO 5219PO-ND |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Mating Cycles | - |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |

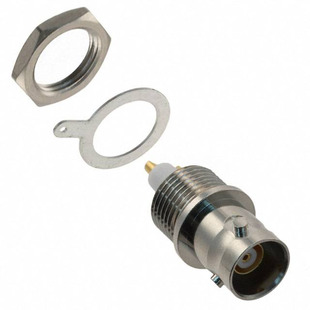

| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Solder Tag | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 500MHz |
| Features | Extended Insulation, Three Lug | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC, Triaxial Connector Jack, Female Socket 50 Ohm Panel Mount Solder Cup |
| Contact Termination | Solder Cup | Connector Type | Jack, Female Socket |
| Connector Style | BNC, Triaxial | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
