Pomona Electronics
| Part Number | 5056 | Manufacturer | Pomona Electronics |
|---|---|---|---|
| Description | CONN BNC TRIAX PLUG STR 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2507 pcs | Data sheet | 5056.pdf |
| Voltage Rating | 500V | Shield Termination | Clamp |
| Series | - | Packaging | Bulk |
| Other Names | 501-1621 5056-ND |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Cycles | - | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |

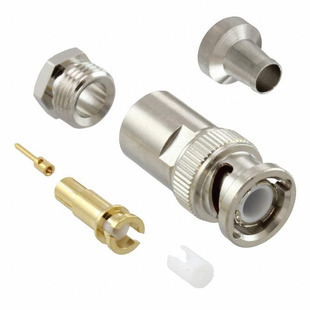

| Ingress Protection | - | Includes | 8 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 3 Insulators, 1 Sleeve |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 500MHz | Features | - |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC, Triaxial Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder | Contact Termination | Solder |
| Connector Type | Plug, Male Pin | Connector Style | BNC, Triaxial |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Cable Group | Belden 9222 | Body Material | Brass |
| Body Finish | Nickel |
