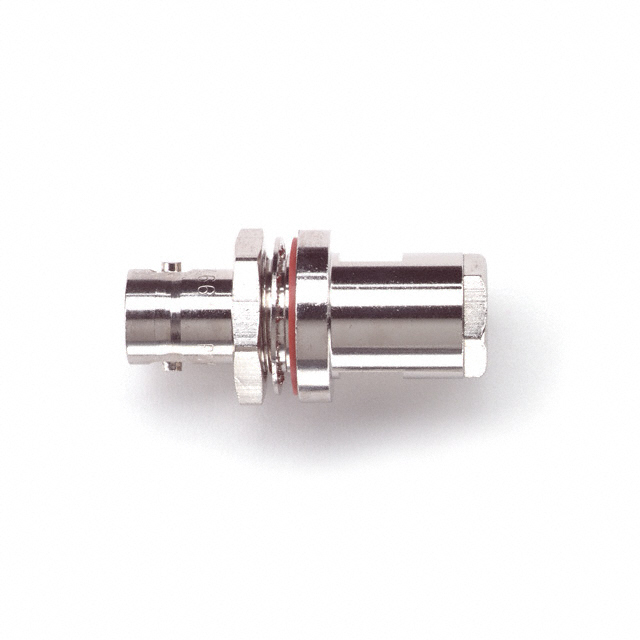

Pomona Electronics
| Part Number | 4661 | Manufacturer | Pomona Electronics |
|---|---|---|---|
| Description | CONN BNC TRIAX JACK STR 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 570 pcs | Data sheet | 4661.pdf |
| Shield Termination | Clamp | Series | - |
| Packaging | Bulk | Other Names | 4661PO 4661PO-ND 501-1625 5935014268640 |
| Operating Temperature | - | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Mating Cycles | - | Manufacturer Standard Lead Time | 3 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 15 pcs - 1 Connector, 2 Braid Clamps, 1 Clamp, 1 Contact, 2 Gaskets, 3 Insulators, 1 Lockwasher, 1 Nut, 2 Retainers, 1 Sleeve |
| Impedance | 50 Ohm | Housing Color | Silver |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC, Triaxial Connector Jack, Female Socket 50 Ohm Panel Mount Solder |
| Contact Termination | Solder | Connector Type | Jack, Female Socket |
| Connector Style | BNC, Triaxial | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Nickel |
