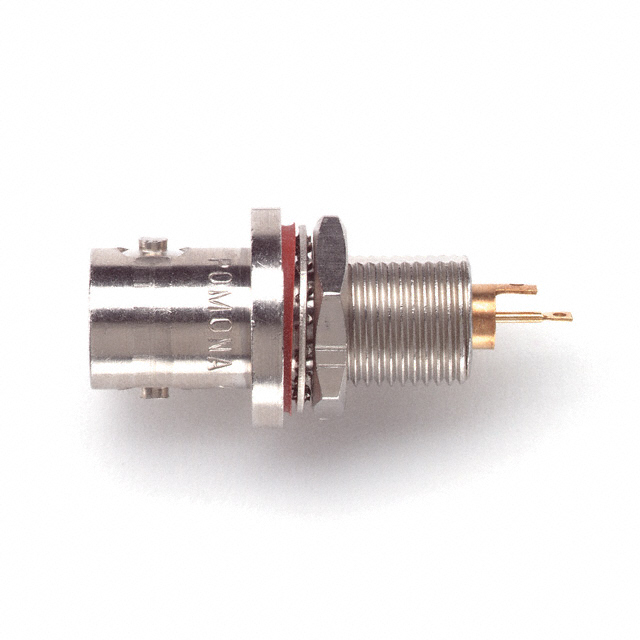

Pomona Electronics
| Part Number | 4388 | Manufacturer | Pomona Electronics |
|---|---|---|---|
| Description | CONN BNC TRIAX RCPT STR 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1293 pcs | Data sheet | 4388.pdf |
| Voltage Rating | 500V | Shield Termination | Solder |
| Series | - | Packaging | Bulk |
| Other Names | 4388-ND 501-1871 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Cycles | - | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut |
| Impedance | 50 Ohm | Housing Color | Silver |
| Frequency - Max | 500MHz | Features | Hermetically Sealed |
| Fastening Type | Bayonet Lock | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Detailed Description | BNC, Triaxial Connector Receptacle, Female Socket 50 Ohm Panel Mount Solder Eyelet | Contact Termination | Solder Eyelet |
| Connector Type | Receptacle, Female Socket | Connector Style | BNC, Triaxial |
| Center Contact Plating | Gold | Center Contact Material | Beryllium Copper |
| Cable Group | - | Body Material | Brass |
| Body Finish | Nickel |
