Pomona Electronics

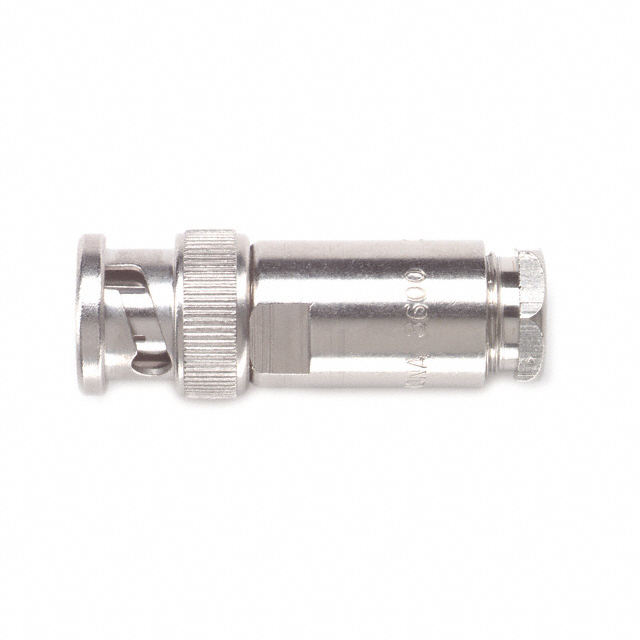

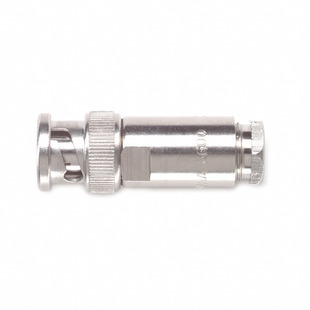

| Part Number | 3600 | Manufacturer | Pomona Electronics |
|---|---|---|---|
| Description | CONN BNC TRIAX PLUG STR 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1397 pcs | Data sheet | 3600.pdf |
| Shield Termination | Clamp | Series | - |
| Packaging | Bulk | Other Names | 3600PO 3600PO-ND 501-1691 5935011706313 |
| Operating Temperature | - | Number of Ports | 1 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Mating Cycles | - | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | - |
| Ingress Protection | - | Includes | 11 pcs - 1 Connector, 1 Braid Clamp, 1 Bushing, 1 Clamp, 1 Contact, 1 Gasket, 1 Outer Contact, 1 Retainer, 2 Sleeves, 1 Washer |
| Impedance | 50 Ohm | Housing Color | Silver |
| Features | - | Fastening Type | Bayonet Lock |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | BNC, Triaxial Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | BNC, Triaxial | Center Contact Plating | Gold |
| Center Contact Material | Brass | Cable Group | Belden 9272 |
| Body Material | Brass | Body Finish | Nickel |
