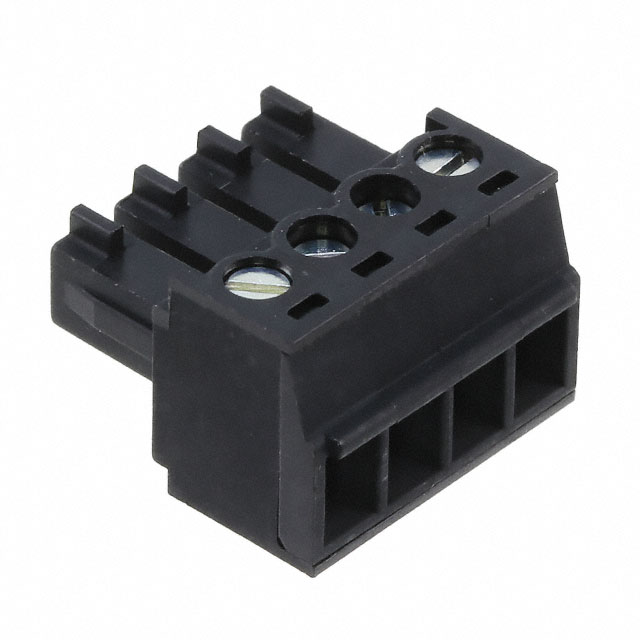

Phoenix Contact
| Part Number | 5452197 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 4POS STR 3.81MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19575 pcs | Data sheet | 5452197.pdf |
| Wire Strip Length | 0.22-0.25 Nm (1.9-2.2 Lb-In) | Wire Gauge or Range - mm² | 14-30 AWG |
| Wire Gauge or Range - Coaxial | 0.2-1.5mm² | Voltage - UL | 8A |
| Voltage - IEC | 8A | Voltage - DC Spark Over (Nom) | - |
| Type Attributes | - | Type | Plug, Female Sockets |
| Torque - Screw | Tin | Termination Style | Screw |
| Terminal - Width | 1 | Series | BCP |
| RoHS Status | Bulk | Plug Wire Entry | - |
| Other Names | 277-11432 5452197-ND BCP-381- 4 BK |
Operating Temperature | - |
| Number of Positions | 4 | Number of Conductors | 0.150" (3.81mm) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 8 Weeks |
| Manufacturer Part Number | 5452197 | Header Orientation | 4 |
| Front Panel Wire Connection | - | Filter Type | 300V |
| Features | - | Expanded Description | 4 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line) |
| Description | TERM BLOCK PLUG 4POS STR 3.81MM | Current - UL | 320V |
| Contact Tail Length | 7mm | Contact Mating Finish | 180° |
| Contact Finish - Mating | 0.437" (11.10mm) | Color | Black |
| Cable Opening | Polyamide (PA), Nylon | Bundle Center to Mounting Center | M2 |
