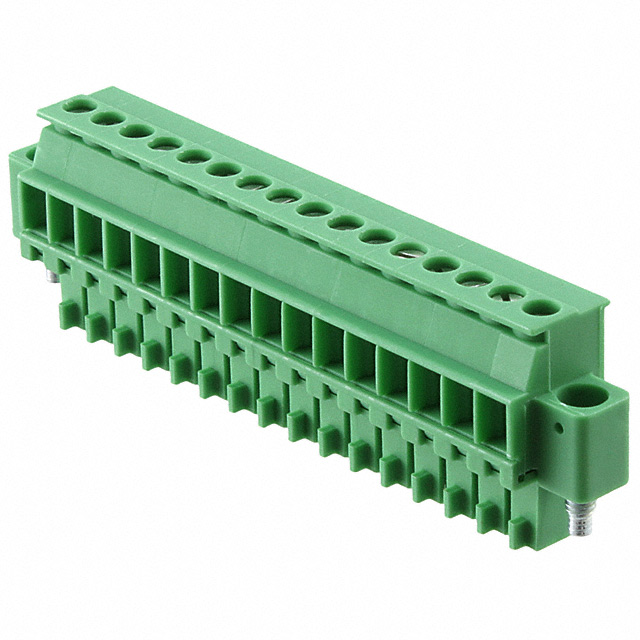

Phoenix Contact
| Part Number | 1863440 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 16POS 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4848 pcs | Data sheet | 1863440.pdf |
| Wire Strip Length | 0.22-0.25 Nm (1.9-2.2 Lb-In) | Wire Gauge or Range - mm² | 14-30 AWG |
| Wire Gauge or Range - Coaxial | 0.14-1.5mm² | Voltage - UL | 8A |
| Voltage - IEC | 8A | Voltage - DC Spark Over (Nom) | - |
| Type Attributes | - | Type | Plug, Female Sockets |
| Torque - Screw | Tin | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Terminal - Width | 1 | Series | COMBICON MCVR |
| RoHS Status | Bulk | Plug Wire Entry | - |
| Other Names | 1863440-ND 277-6658 MCVR 1.5/16-STF-3.5 MCVR1.5/16-STF-3.5 |
Operating Temperature | - |
| Number of Positions | 16 | Number of Conductors | 0.138" (3.50mm) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 3 Weeks |
| Manufacturer Part Number | 1863440 | Header Orientation | 16 |
| Front Panel Wire Connection | - | Filter Type | 300V |
| Features | Mating Flange | Expanded Description | 16 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 90° Free Hanging (In-Line) |
| Description | TERM BLOCK PLUG 16POS 3.5MM | Current - UL | 320V |
| Contact Tail Length | 7mm | Contact Mating Finish | 90° |
| Contact Finish - Mating | 0.752" (19.10mm) | Color | Green |
| Cable Opening | Polyamide (PA), Nylon | Bundle Center to Mounting Center | M2 |
