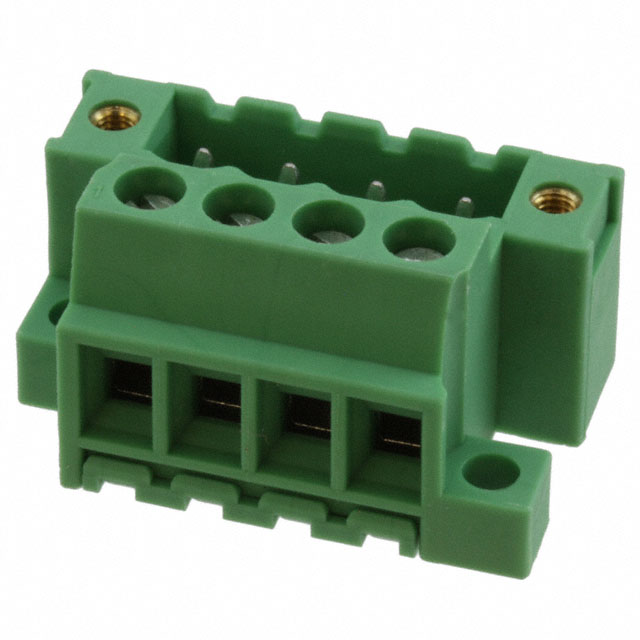

Phoenix Contact
| Part Number | 1788363 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK RCPT 4POS 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9977 pcs | Data sheet | 1788363.pdf |
| Wire Strip Length | 0.5-0.6 Nm (4.4-5.3 Lb-In) | Wire Gauge or Range - mm² | 12-30 AWG |
| Wire Gauge or Range - Coaxial | 0.2-2.5mm² | Voltage - UL | 10A |
| Voltage - IEC | 12A | Voltage - DC Spark Over (Nom) | - |
| Type Attributes | - | Type | Receptacle, Male Pins |
| Torque - Screw | Tin | Termination Style | Screw |
| Terminal - Width | 1 | Series | COMBICON MVSTBU |
| RoHS Status | Bulk | Plug Wire Entry | - |
| Other Names | 1788363-ND 277-6565 MVSTBU 2,5/ 4-GFB-5,08 MVSTBU2,5/4-GFB-5,08 |
Operating Temperature | - |
| Number of Positions | 4 | Number of Conductors | 0.200" (5.08mm) |
| Mounting Type | Board Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 3 Weeks |
| Manufacturer Part Number | 1788363 | Header Orientation | 4 |
| Front Panel Wire Connection | - | Filter Type | 300V |
| Features | Mating and Mounting Flange | Expanded Description | 4 Position Terminal Block Receptacle, Male Pins 0.200" (5.08mm) Board Mount |
| Description | TERM BLOCK RCPT 4POS 5.08MM | Current - UL | 630V |
| Contact Tail Length | 7mm | Contact Mating Finish | - |
| Contact Finish - Mating | 0.681" (17.30mm) | Color | Green |
| Cable Opening | Polyamide (PA), Nylon | Bundle Center to Mounting Center | M3 |
