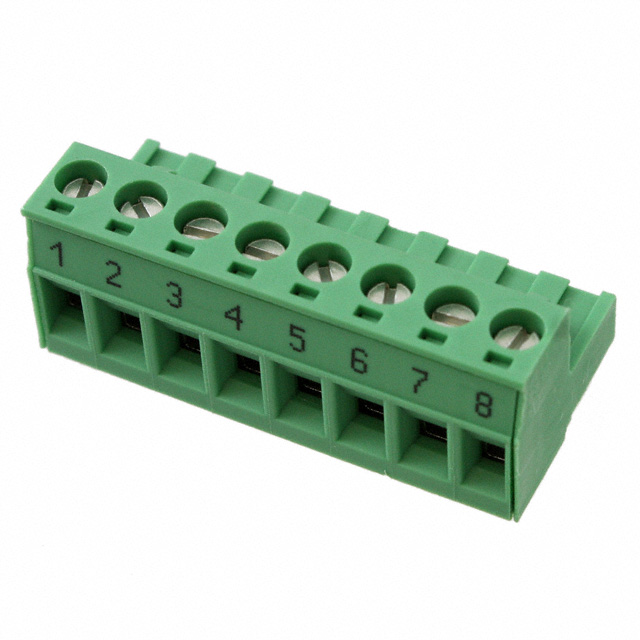

Phoenix Contact
| Part Number | 1758393 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13369 pcs | Data sheet | 1758393.pdf |
| Wire Strip Length | 0.5-0.6 Nm (4.4-5.3 Lb-In) | Wire Gauge or Range - mm² | 12-30 AWG |
| Wire Gauge or Range - Coaxial | 0.2-2.5mm² | Voltage - UL | - |
| Voltage - IEC | 12A | Voltage - DC Spark Over (Nom) | - |
| Type Attributes | - | Type | Plug, Female Sockets |
| Torque - Screw | Tin | Termination Style | Screw - Clamping Yoke (Tension Sleeve) |
| Terminal - Width | 1 | Series | COMBICON MSTB |
| RoHS Status | Bulk | Plug Wire Entry | - |
| Other Names | 277-1970 MSTB 2.5/8-ST-5.08 BD:1-8 MSTB2,5/8-ST-5,08BD:1-8 |
Operating Temperature | - |
| Number of Positions | 8 | Number of Conductors | 0.200" (5.08mm) |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 3 Weeks |
| Manufacturer Part Number | 1758393 | Header Orientation | 8 |
| Front Panel Wire Connection | - | Filter Type | - |
| Features | Positions Stamped, Retention Latches (Non-Wire Side) | Expanded Description | 8 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) |
| Description | TERM BLOCK PLUG 8POS STR 5.08MM | Current - UL | 630V |
| Contact Tail Length | 7mm | Contact Mating Finish | 180° |
| Contact Finish - Mating | 0.591" (15.00mm) | Color | Green |
| Cable Opening | Polyamide (PA), Nylon | Bundle Center to Mounting Center | M3 |
