Phoenix Contact
| Part Number | 5452730 | Manufacturer | Phoenix Contact |
|---|---|---|---|

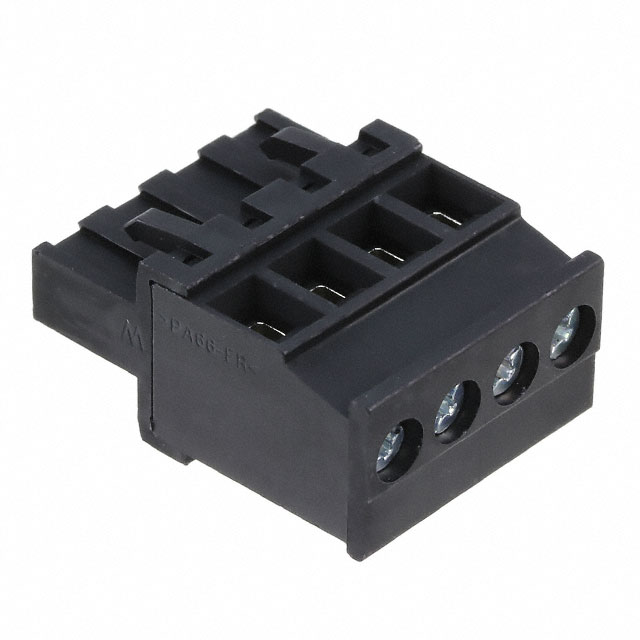

| Description | TERM BLOCK PLUG 4POS 90DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4259 pcs | Data sheet | 5452730.pdf |
| Wire Strip Length | 7mm | Wire Gauge or Range - mm² | 0.2-2.5mm² |
| Wire Gauge or Range - AWG | 12-30 AWG | Voltage - UL | 300V |
| Voltage - IEC | 320V | Type | Plug, Female Sockets |
| Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) | Termination Style | Screw |
| Series | BCVP | Screw Size | M3 |
| Positions Per Level | 4 | Plug Wire Entry | 90° |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 277-11459 5452730-ND BCVP-500R- 4 BK |
Operating Temperature | - |
| Number of Positions | 4 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.024" (26.01mm) | Ingress Protection | - |
| Housing Material | - | Header Orientation | - |
| Features | Retention Latches (Wire Side) | Detailed Description | 4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line) |
| Current - UL | 12A | Current - IEC | 12A |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | - | Color | Black |
