Phoenix Contact
| Part Number | 5442905 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLOCK PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35250 pcs | Data sheet | 5442905.pdf |
| Wire Termination | Screw | Wire Gauge | 12-30 AWG |
| Voltage | 300V | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Series | COMBICON BC | Screw Thread | M3 |
| Screw Material - Plating | - | Positions Per Level | 3 |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 277-15485 5442905-ND BC-500X18- 3 GN |
Operating Temperature | - |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Orientation | Horizontal with Board |
| Manufacturer Standard Lead Time | 3 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA), Nylon | Features | Interlocking (Side) |

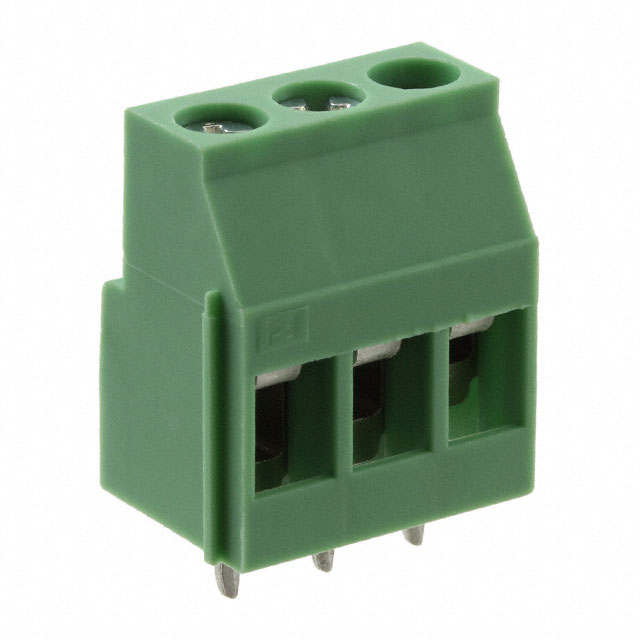

| Detailed Description | 3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole | Current | 15A |
| Contact Material - Plating | - | Color | Green |
| Clamp Material - Plating | - |
