Phoenix Contact
| Part Number | 5442002 | Manufacturer | Phoenix Contact |
|---|---|---|---|

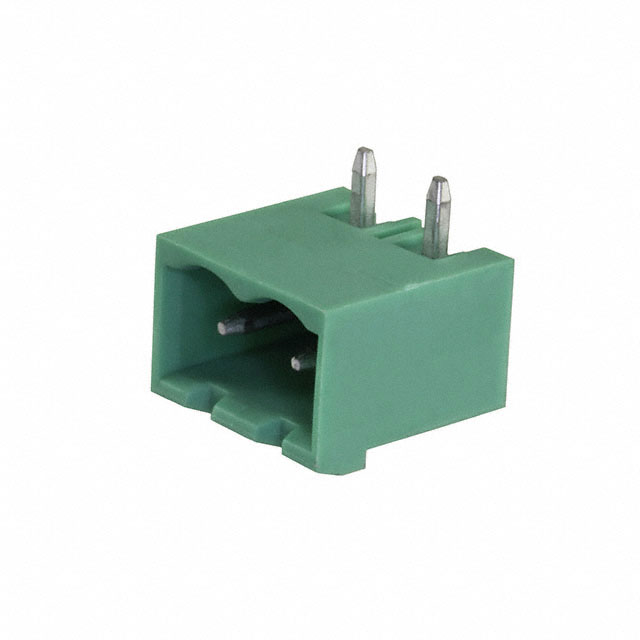

| Description | TERM BLOCK HDR 2POS 90DEG 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 138886 pcs | Data sheet | 5442002.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - IEC | 400V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | BCH |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 277-11311 5442002-ND BCH-508HS- 2 GN |
| Operating Temperature | - | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.339" (8.61mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole |
| Current - IEC | 12A | Contact Tail Length | 0.138" (3.50mm) |
| Contact Mating Finish | - | Contact Material | - |
| Color | Green |
