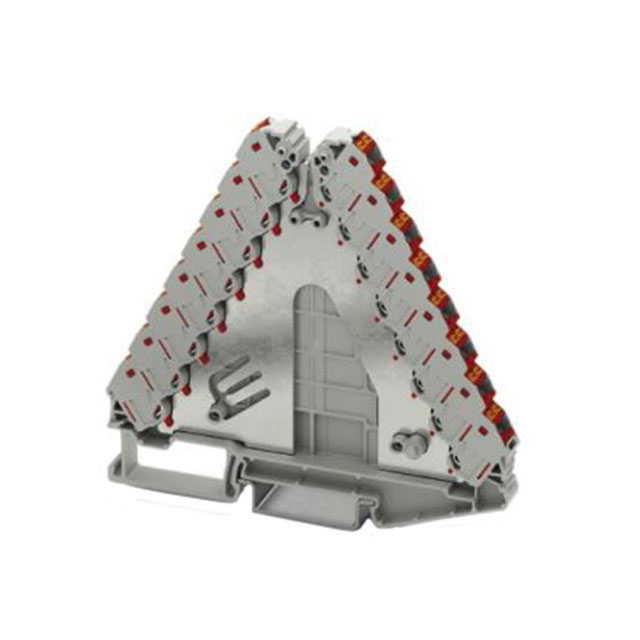

Phoenix Contact
| Part Number | 3270226 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLK MARSHALLING 32POS GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2468 pcs | Data sheet | 3270226.pdf |
| Wire Gauge or Range - mm² | 0.14-2.5mm² | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - IEC | 500V | Type | Marshalling Connector |
| Termination Style | Push In, Spring | Terminal - Width | - |
| Stripping Length | 10mm | Series | CLIPLINE PT |
| Other Names | 277-15467 3270226-ND PTRVB 8-PV /RD |
Operating Temperature | - |
| Number of Positions | 32 | Number of Levels | 8 |
| Mounting Type | DIN Rail | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 2 Weeks | Length | 3.937" (100.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Color | Gray |
| Height (Max) | 3.740" (95.00mm) | Features | - |
| Detailed Description | 32 Position Terminal Block Gray Marshalling Connector | Current - IEC | 17.5A |
