Phoenix Contact
| Part Number | 3249198 | Manufacturer | Phoenix Contact |
|---|---|---|---|

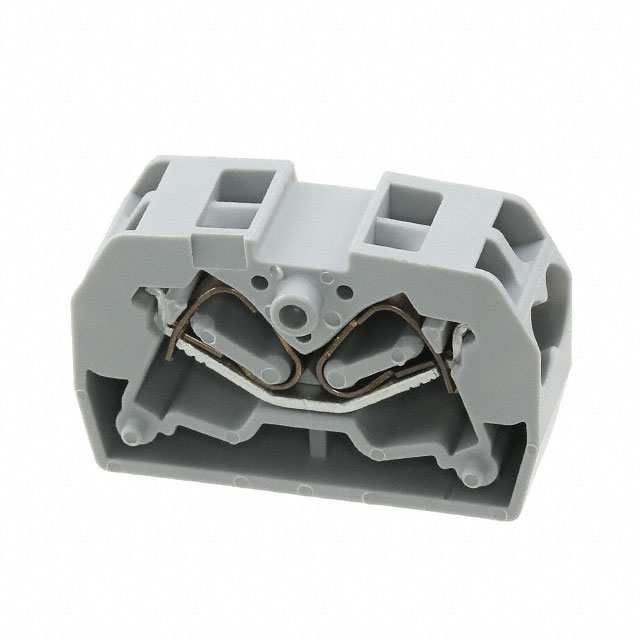

| Description | TERM BLK MIDDLE 4POS 10.4MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55122 pcs | Data sheet | 3249198.pdf |
| Wire Gauge or Range - mm² | 0.08-4mm² | Wire Gauge or Range - AWG | 12-28 AWG |
| Voltage - UL | 300V | Voltage - IEC | 800V |
| Type | Middle | Termination Style | Push In, Spring |
| Terminal - Width | 10.4mm | Stripping Length | 8mm |
| Series | CLIPLINE ST | Other Names | 277-15462 3249198-ND MSDBV2,5-M MSDBV25M |
| Operating Temperature | - | Number of Positions | 4 |
| Number of Levels | 1 | Mounting Type | Direct Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 2 Weeks |
| Length | 1.260" (32.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Gray | Height (Max) | 0.866" (22.00mm) |
| Features | - | Detailed Description | 4 Position Terminal Block Gray Middle 10.4mm |
| Current - UL | 20A | Current - IEC | 24A |
