Phoenix Contact
| Part Number | 3244630 | Manufacturer | Phoenix Contact |
|---|---|---|---|

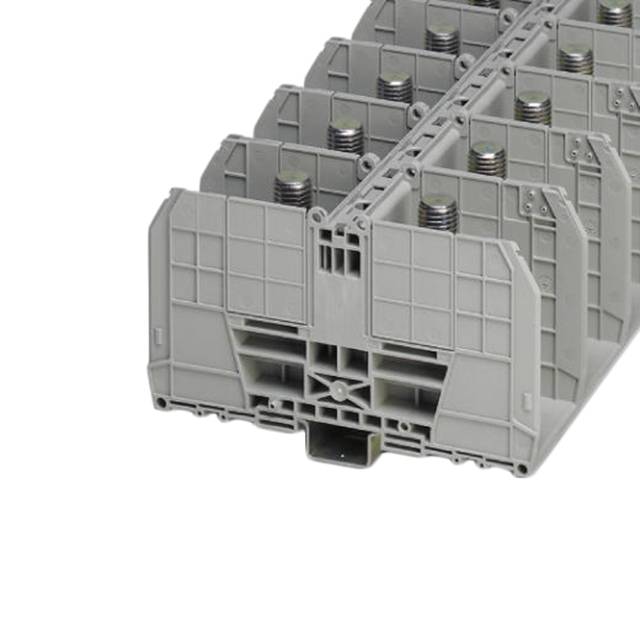

| Description | TERM BLK NEMA 2POS GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2198 pcs | Data sheet | 3244630.pdf |
| Wire Gauge or Range - mm² | 25-300mm² | Wire Gauge or Range - AWG | 1000 MCM (kcmil)-4 AWG |
| Voltage - UL | 1kV | Voltage - IEC | 1kV |
| Type | NEMA Open Construction | Termination Style | Bolt and Nut |
| Terminal - Width | - | Stripping Length | - |
| Series | CLIPLINE RBO | Other Names | 277-15460 3244630-ND RBO 16 |
| Operating Temperature | - | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | DIN Rail |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length | 6.457" (164.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Gray | Height (Max) | 3.909" (99.30mm) |
| Features | - | Detailed Description | 2 Position Terminal Block Gray NEMA Open Construction |
| Current - UL | 540A | Current - IEC | 520A |
