Phoenix Contact

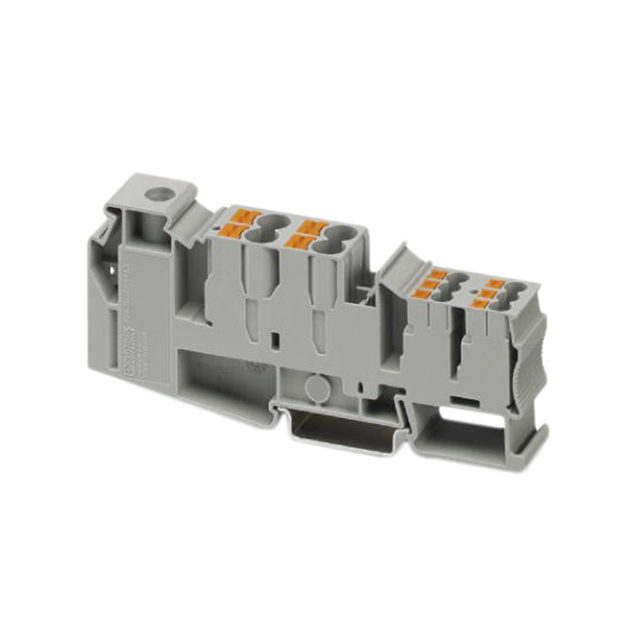

| Part Number | 3214080 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | POTENTIAL COLLECTIVE TERMINAL, C | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3575 pcs | Data sheet | 3214080.pdf |
| Wire Gauge or Range - mm² | 0.5-10mm², 1.5-50mm² | Wire Gauge or Range - AWG | 1/0-16 AWG, 8-20 AWG |
| Voltage - UL | 600V | Voltage - IEC | 1000V |
| Type | Feed Through | Termination Style | Push In; Screw |
| Terminal - Width | 16.3mm | Stripping Length | 12mm, 18mm |
| Series | CLIPLINE PTU | Other Names | 277-16902 3214080-ND PTU 35/4X6/6X2 5 |
| Number of Positions | 11 | Number of Levels | 1 |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 2 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Fuse Type | - | Features | - |
| Disconnect Type | - | Detailed Description | Terminal Block Connector 11 Position Feed Through Gray 1/0-16 AWG, 8-20 AWG |
| Current - UL | 102A | Current - IEC | 105A |
| Color | Gray |
