Phoenix Contact
| Part Number | 3213137 | Manufacturer | Phoenix Contact |
|---|---|---|---|

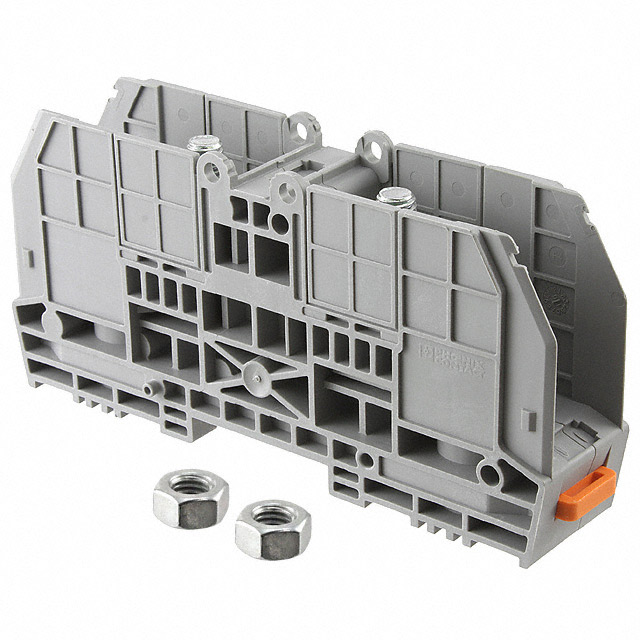

| Description | TERM BLK NEMA 2POS 29.0MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6444 pcs | Data sheet | 3213137.pdf |
| Wire Gauge or Range - mm² | 6-70mm² | Wire Gauge or Range - AWG | 2/0-8 AWG |
| Voltage - UL | 600V | Voltage - IEC | 1kV |
| Type | NEMA Open Construction | Termination Style | Bolt and Nut |
| Terminal - Width | 29.0mm | Stripping Length | - |
| Series | CLIPLINE RBO | Other Names | 277-9643 3213137-ND RBO8 |
| Operating Temperature | - | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | DIN Rail |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | Polyamide (PA), Nylon |
| Manufacturer Standard Lead Time | 2 Weeks | Length | 5.354" (136.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Color | Gray |
| Height (Max) | 2.933" (74.50mm) | Features | - |
| Detailed Description | 2 Position Terminal Block Gray NEMA Open Construction 29.0mm | Current - UL | 175A |
| Current - IEC | 192A |
