Phoenix Contact
| Part Number | 3212072 | Manufacturer | Phoenix Contact |
|---|---|---|---|

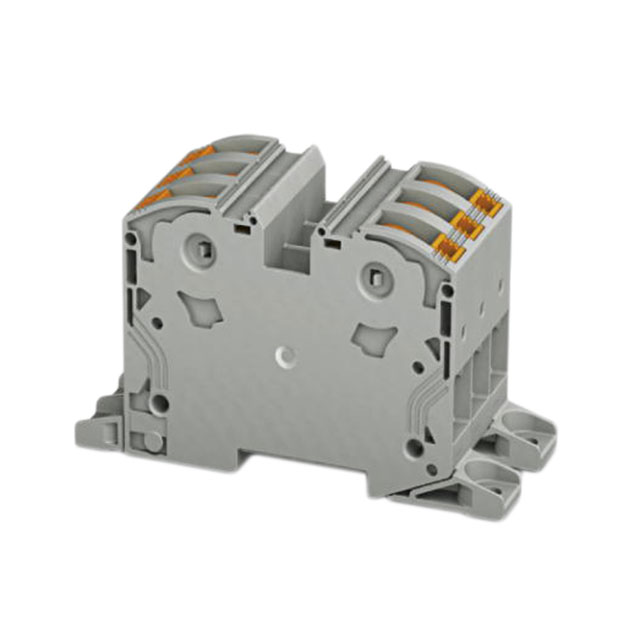

| Description | TERM BLK MIDDLE 4POS 48.0MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2838 pcs | Data sheet | 1.3212072.pdf2.3212072.pdf |
| Wire Gauge or Range - mm² | 2.5-35mm² | Wire Gauge or Range - AWG | 2-14 AWG |
| Voltage - UL | 600V | Voltage - IEC | 1kV |
| Type | Middle | Termination Style | Push In, Spring |
| Terminal - Width | 48.0mm | Stripping Length | 25mm |
| Series | CLIPLINE PTPOWER | Other Names | 277-15355 3212072-ND PTPOWER 35-3L-F |
| Operating Temperature | - | Number of Positions | 4 |
| Number of Levels | 2 | Mounting Type | Direct Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 3 Weeks |
| Length | 4.732" (120.19mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Gray | Height (Max) | 2.689" (68.30mm) |
| Features | - | Detailed Description | 4 Position Terminal Block Gray Middle 48.0mm |
| Current - UL | 115A | Current - IEC | 125A |
