Phoenix Contact

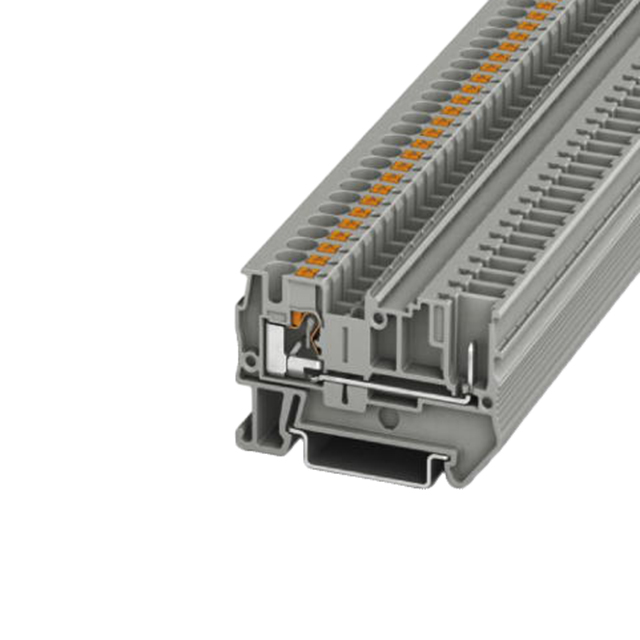

| Part Number | 3211937 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLK PLUG 2POS 6.2MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50806 pcs | Data sheet | 1.3211937.pdf2.3211937.pdf |
| Wire Gauge or Range - mm² | 0.2-6mm² | Wire Gauge or Range - AWG | 10-24 AWG |
| Voltage - UL | 600V | Voltage - IEC | 800V |
| Type | Plug Connection | Termination Style | Plug Receptacles, Push In, Spring |
| Terminal - Width | 6.2mm | Stripping Length | 10mm |
| Series | CLIPLINE COMBI PT | Other Names | 277-15339 3211937-ND PT 4/1P |
| Operating Temperature | - | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | DIN Rail |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 2 Weeks |
| Length | 2.205" (56.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Gray | Height (Max) | 1.732" (44.00mm) |
| Features | - | Detailed Description | 2 Position Terminal Block Gray Plug Connection 6.2mm |
| Current - UL | 28A | Current - IEC | 32A |
