Phoenix Contact
| Part Number | 3211825 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN TERM BLK FEED THRU 10-24AWG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9948 pcs | Data sheet | 3211825.pdf |
| Wire Gauge or Range - mm² | 0.2-4mm² | Wire Gauge or Range - AWG | 10-24 AWG |
| Voltage - UL | 600V | Voltage - IEC | 500V |
| Type | Feed Through | Termination Style | Push In, Spring |
| Terminal - Width | 6.2mm | Stripping Length | 10mm |
| Series | CLIPLINE PTTB | Other Names | 277-9636 3211825-ND PITTB4-PV PTTB 4-PV PTTB4-PV |
| Number of Positions | 4 | Number of Levels | 2; Connected |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 2 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Fuse Type | - |
| Features | - | Disconnect Type | - |

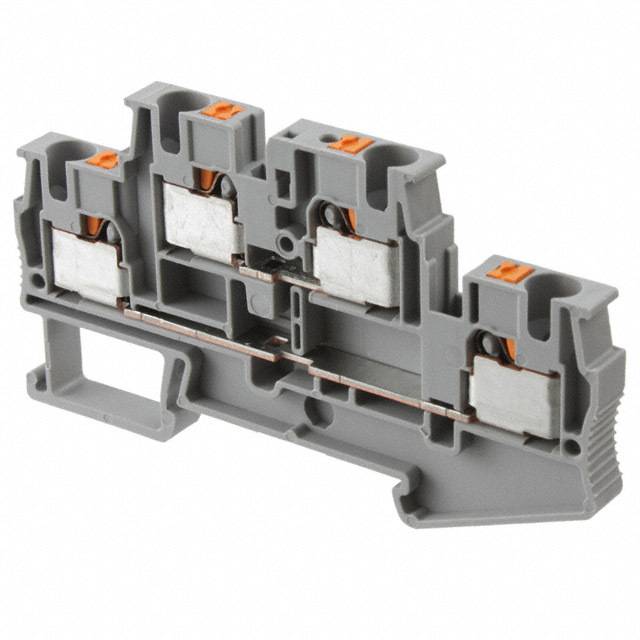

| Detailed Description | Terminal Block Connector 4 Position Feed Through Gray 10-24 AWG | Current - UL | 30A |
| Current - IEC | 30A | Color | Gray |
