Phoenix Contact
| Part Number | 3209895 | Manufacturer | Phoenix Contact |
|---|---|---|---|

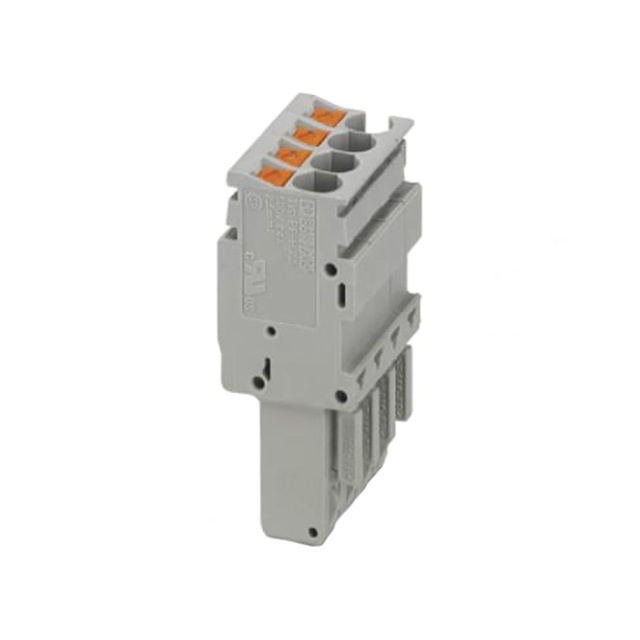

| Description | TERM BLOCK PLUG 4POS STR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17320 pcs | Data sheet | |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.14-4mm² |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 300V |
| Voltage - IEC | 500V | Type | Plug, Female Sockets |
| Torque - Screw | - | Termination Style | Screwless - Push-In Spring |
| Series | CLIPLINE COMBI PP-H | Screw Size | - |
| Positions Per Level | 4 | Plug Wire Entry | 180° |
| Pitch | - | Packaging | Bulk |
| Other Names | 277-12494 3209895-ND PP-H2,5/4 PPH254 |
Operating Temperature | - |
| Number of Positions | 4 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 1.535" (39.00mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA), Nylon |
| Header Orientation | - | Features | - |
| Detailed Description | 4 Position Terminal Block Plug, Female Sockets 180° Free Hanging (In-Line) | Current - UL | 20A |
| Current - IEC | 24A | Contact Tail Length | - |
| Contact Mating Finish | - | Contact Material | - |
| Color | Gray |
