Phoenix Contact

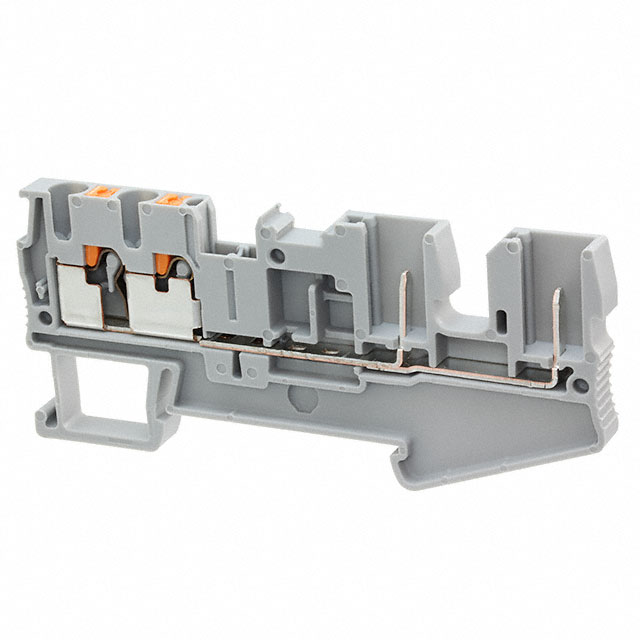

| Part Number | 3209662 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | TERM BLK PLUG 4POS 5.2MM GRAY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 28510 pcs | Data sheet | |
| Wire Gauge or Range - mm² | 0.14-4mm² | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 300V | Voltage - IEC | 500V |
| Type | Plug Connection | Termination Style | Plug Receptacles, Push In, Spring |
| Terminal - Width | 5.2mm | Stripping Length | 10mm |
| Series | CLIPLINE PT | Other Names | 277-12491 3209662-ND PIT 2,5-QUATTRO/2P PIT2,5-QUATTRO/2P |
| Operating Temperature | - | Number of Positions | 4 |
| Number of Levels | 1 | Mounting Type | DIN Rail |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Length | 3.189" (81.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Color | Gray | Height (Max) | 1.732" (44.00mm) |
| Features | - | Detailed Description | 4 Position Terminal Block Gray Plug Connection 5.2mm |
| Current - UL | 20A | Current - IEC | 24A |
