Phoenix Contact

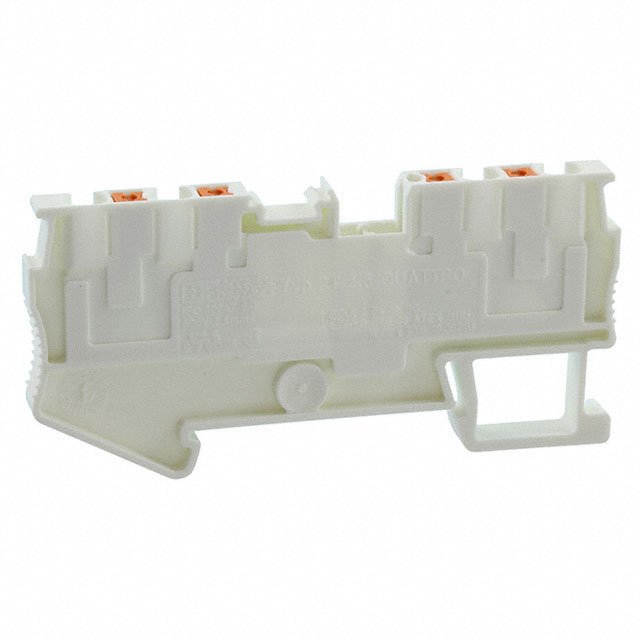

| Part Number | 3209579 | Manufacturer | Phoenix Contact |
|---|---|---|---|
| Description | CONN TERM BLK FEED THRU 12-26AWG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30609 pcs | Data sheet | 3209579.pdf |
| Wire Gauge or Range - mm² | 0.14-4mm² | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 600V | Voltage - IEC | 800V |
| Type | Feed Through | Termination Style | Push In, Spring |
| Terminal - Width | 5.2mm | Stripping Length | 10mm |
| Series | CLIPLINE PT | Other Names | 277-12488 3209579-ND PT 2 5-QUATTRO WH |
| Number of Positions | 4 | Number of Levels | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Material - Insulation | Polyamide (PA), Nylon | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Fuse Type | - |
| Features | - | Disconnect Type | - |
| Detailed Description | Terminal Block Connector 4 Position Feed Through White 12-26 AWG | Current - UL | 20A |
| Current - IEC | 24A | Color | White |
